GOLDLINE MICRO PERFORATED WOOD Acoustic Panels for Walls and Ceiling

The opportunities in design and applications are endless for high end absorber with aesthetic beauty with the absorption values that are very excellent.

Benefits of this unique micro perforated product

The product is with a large variation of surfaces available, like all real wood veneers, colors. RAL range and all so with all laminates collection.

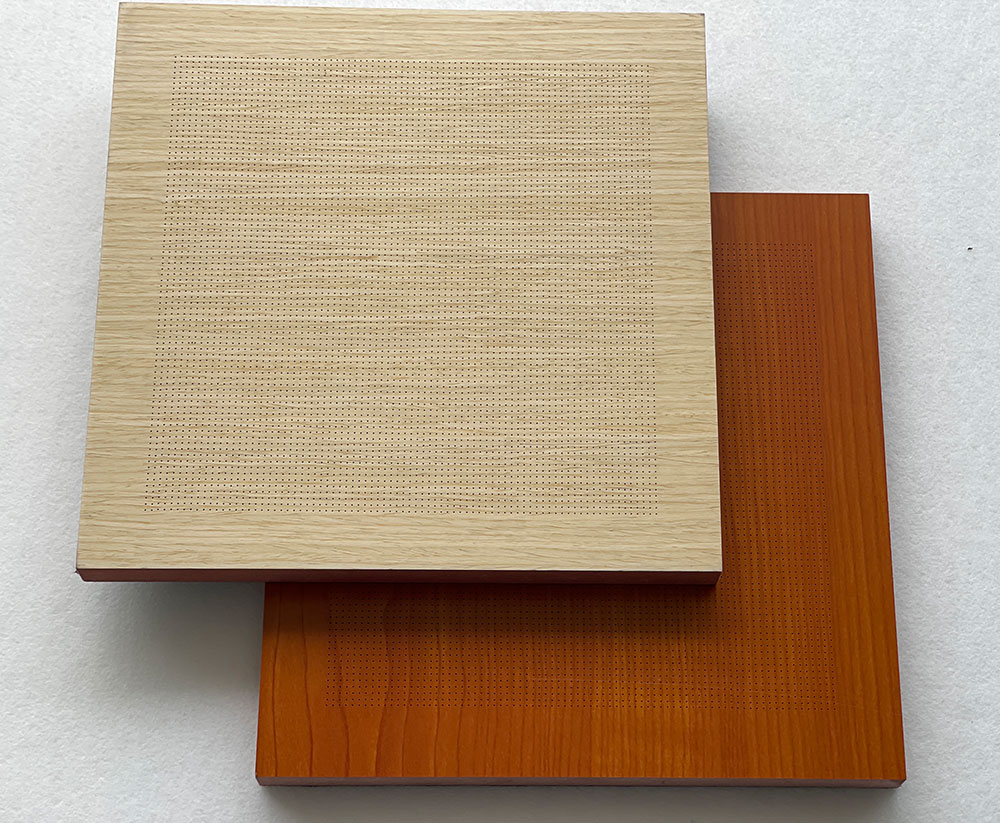

The panels with un- perforated boarders; this is a very special tool for individual design solutions

The advantage in a short description:

  • Very aesthetic and functional.
  • In Micro Perforation almost invisible acoustic material with high absorption.
  • The absolutely top trend products.

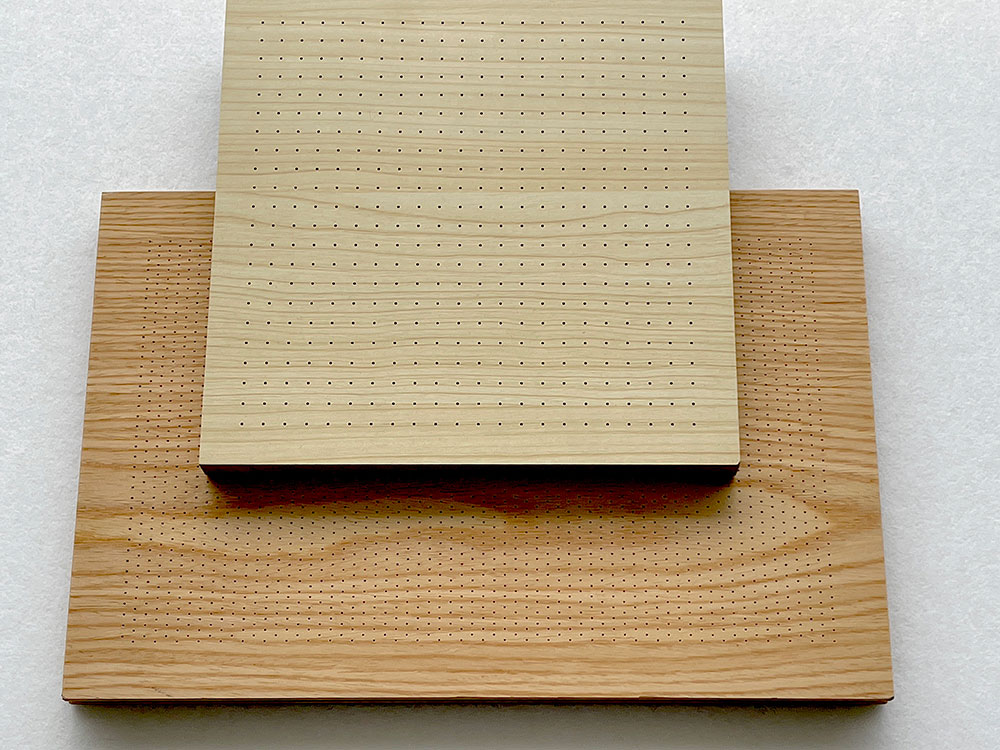

  • The Ø 0.5mm holes are almost not visible, but the absorption values are very excellent.

The result is a seamless and light looking design of your wall and ceiling paneling.

These panels are visually attractive offering natural wood veneers, engineered and designer veneers, textures, colors, decorative effects, melamine and RAL paint finishes and expressions.

RANGE OF ACOUSTIC WOOD PANELS IN MICRO PERFORATION OF 0.5mm HAVE BEEN DEVELOPED WHICH ARE ALMOST INVISIBLE. THESE MICRO PERFORATED ACOUSTIC WOOD PANELS ARE VISUALLY ATTRACTIVE DUE TO THE BEAUTY OF WOOD VENEERS, LAMINATES AND RAL COLORS AS WELL AS BEING EASY TO INSTALL. THE MICRO PERFORATED ACOUSTIC WOOD PANELS DECORATE AS WELL AS PROVIDE A SOLUTION TO REVERBERATE NOISE LEVELS INSIDE BUILDINGS. SINCE WOOD IS A PRODUCT OF NATURE, THE WOOD ACOUSTIK PRO RANGE OF MICRO PERFORATED ACOUSTIC WOOD PANELS CREATES A NATURALLY AESTHETIC SOLUTION TO NOISE CONTROL.

Applications

GOLDLINE Micro Perforated Acoustic Wood Panels for Walls and Ceiling are the Premium Solutions for Luxury Interior Design and Controlling Ambient Reverberated Noises and Sound Transmission for:

  • Entertainment
  • Educational
  • Healthcare
  • Offices / Commercial Spaces
  • Music Recording and Broadcasting Studios

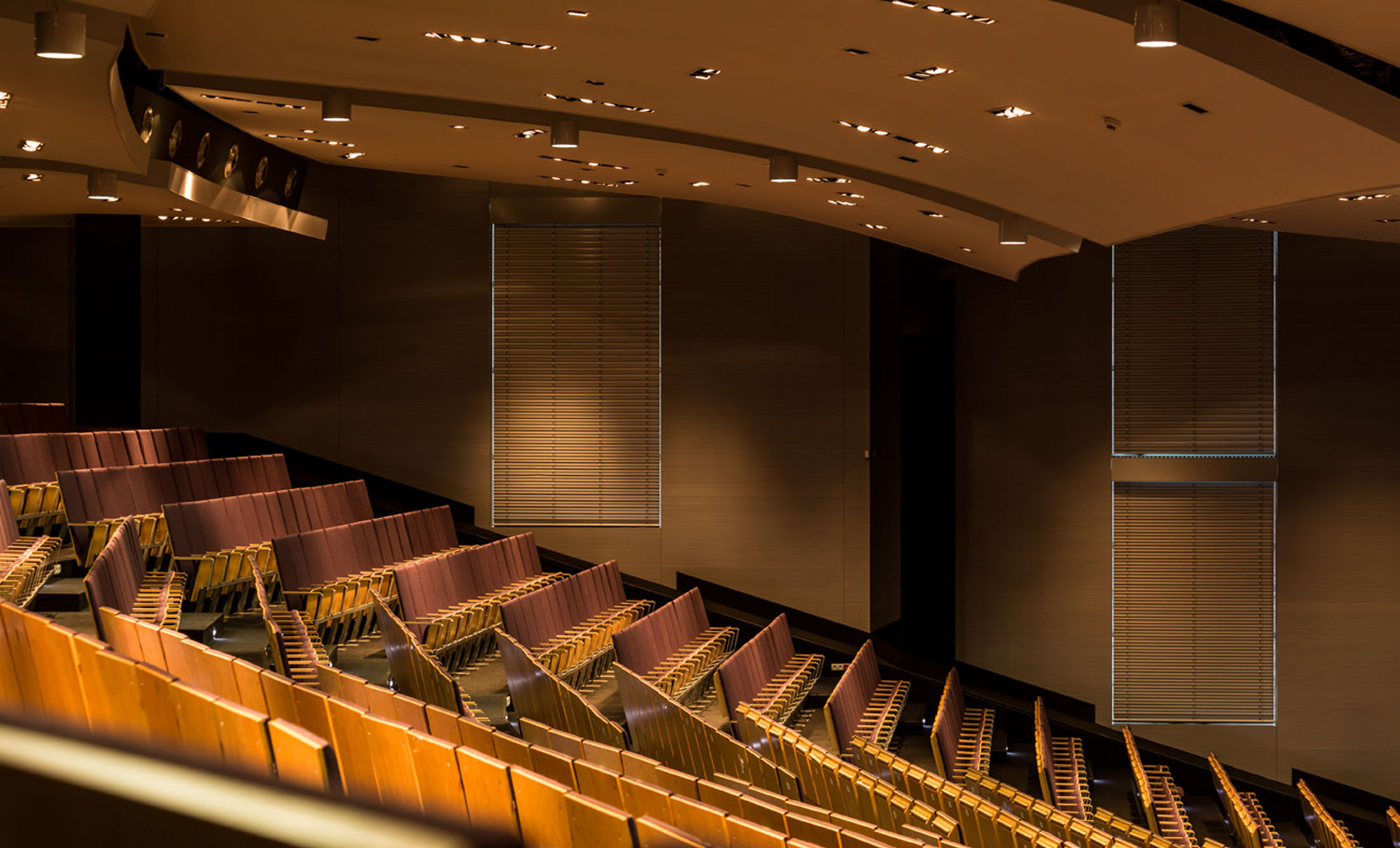

  • Auditoriums, Cinemas & Theaters

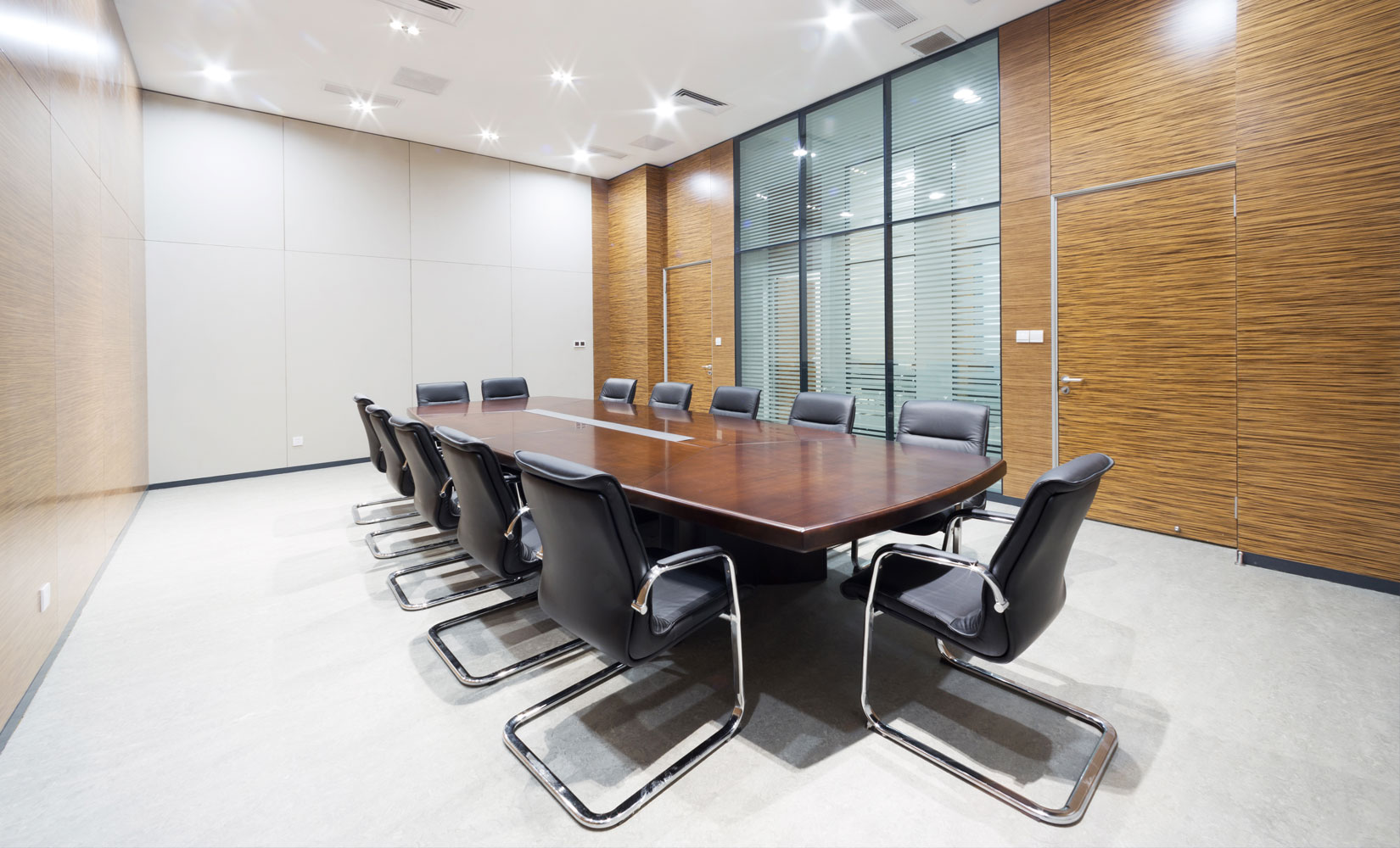

  • Conference and Meeting Areas
  • Recreational and Fitness Places
  • Multimedia Presentation Environments
  • Homes and every area where sound matter.

Possibilities

Limitless branding and design possibilities with in-house custom cutting and size customization.

The result is a seamless and light looking design of your wall and ceiling paneling. These panels are visually attractive offering natural veneers, engineered and designer veneers, textures, colors, decorative effects, melamine and RAL paint finishes and expressions.

Specifications

GOLDLINE WOOD ACOUSTIK PRO – PERFORATED WOOD ACOUSTICAL PANELS / WALL CLADDING & CEILING SYSTEM

Product Specifications

Name: GOLDLINE WOOD ACOUSTIK PRO – PERFORATED WOOD
ACOUSTICAL PANELS / WALL CLADDING / CEILING SYSTEM

Type: 0.5/2/2 – 0.5/4/4 – 0.5/0.5/8/ – 1/2/2 – 1/4/4 – 1/8/8/ and OTHER MICRO PERFORATION DESIGNS

Material: HIGH DENSITY MDF / REAL NATURAL WOOD VENEERS, ENGINEERED VENEERS, ALPI VENEERS, LAMINATES & RAL PAINTS

Edges: STRAIGHT EDGES or PVC Edging

Dimensions: 600 mm & 1200mm Widths and 2400mm Lengths
Thicknesses: 15mm and 18mm
Density: 680 to 720 /Kg/m³
Acoustic Backing: Black Fleece and Sound Absorption as Optional
Properties: The base core board is high density MDF made from various wood spices as Fire Rated and Non-Fire Rated and Moisture Resistant

SOUND ABSORPTION / ACOUSTIC BACKING

Material: 100% POLYESTER FIBERS (ECO FRIENDLY / GREEN PRODUCT)
Properties:

Fire Rating

Class A NFPA 101 Life Safety Code

Fire Test Certified

ASTM E84-90A Equivalent to NFPA No. 255 and UL No. 723

Flame Spread Index

0 – 25 Flame Spread Index

Edges

Thermal Bonded in a Non-Woven Matrix

Fungi Resistance Certified

ASTM C 1338 – 08

Smoke Developed Index values

0 – 450 Smoke Developed Index

LEED Rating

MER V 4.1 Rating

Material Colors Available

BLACK, BEIGE, DARK BLUE, WHITE and GREY, BURGUNDY AND OTHERS ON REQUESTS AND SPECIAL ORDERS

Sound Absorption Certified

ASTM C423-09A

Absorption Coefficient

1.00 and 1.01@ 5000 Hz

NRC

0.70 and 0.95

Density

42 Kgs to 120 Kgs

Thicknesses

25mm and 50mm

Dimensions

1200 x 2400mm

Installation

Any Smooth Surface

Mechanical Installation

GOLDLINE Anchor System

Components

Polyester Resin

CAS NO.

68604-67-1

Percent Range

90-95%

OSHA regulations

NOT hazardous according OHSA29CFR1910.1200

HMIS Ratings

Health 0 Flammability 0 Reactivity 0

Primary Route of Exposure

None

Eye contact

No adverse effects expected

Skin Contact

No adverse effects expected

Inhalation

No adverse effects expected

Ingestion

No adverse effects expected

Medical Conditions Aggravated by Exposure

None expected

PHYSICAL AND CHEMICAL PROPERTIES

GOLDLINE POLYESTER SOUND ABSORPTION ACOUSTICAL SYSTEM

ODOR

None

Physical state

Solid

Vapor Pressure

None

Vapor Density(air-1)

Not Applicable

pH

Not Applicable

DOT Corrosivity

Not Applicable

Percent Volatile by Volume

<1%

VOC- Volatile Organic Content

<1%

Molecular Weight

Not Applicable

Boiling Point

Not Applicable

Melting Point

220C

Specific Gravity

>1.0

Average Carbon Number

Not Applicable

Viscosity@100F

Not Applicable

Viscosity@40C

Not Applicable

Pour Point

Not Applicable

Solubility in water

Not Soluble

Octanol/Water Coefficient

None

Chemical Stability

Stable

Conditions to Avoid

None

Incompatible Materials to Avoid

None

Hazards in Blend:

Not Hazardous

Sizes & Thicknesses and Shapes & Forms

ThicknessBoard WidthBoard Length
9mm
12mm
1200mm
1200mm
600mm
2400mm
1200mm
1200mm
25mm1200mm
1200mm
1200mm
600mm
2400mm
2700mm
1200mm
1200mm
50mm1200mm
1200mm
2400mm
1200mm

Complementary Products

GOLDLINE WOOD ACOUSTIC PRO GROOVE N STRIP

GOLDLINE WOOD ACOUSTIC PRO PERFORATED PANELS

GOLDLINE SOUND INSULATION – SOUND BLANKETS GSB
