Multi-purpose use demands that auditorium acoustics satisfy acoustics needs for theatrical performances, concerts, speeches, assemblies, and public gatherings equally well.

GOLDEN HARVEST consults with auditorium architects, facilities managers, and technical directors to shape and design spaces for optimal performance of auditorium acoustics. In the design phase, we use sophisticated acoustical modeling software to predict and analyze projection, reverberation, reflection, vibration, and other acoustical issues. When an auditorium is already built, we use scientific acoustic measurement technologies and predictive modeling to analyze existing acoustics and evaluate alternative remedies for acoustical problems.
Our experience includes the design of auditorium acoustics, interior architecture and technical systems for a wide range of corporate office and conference centers, schools and universities, convention and meeting centers, and community buildings, and others

Auditorium acoustics services include:
Acoustical design
Acoustical modeling
Acoustical measurement
Noise isolation
Mechanical systems noise
control and vibration isolation
Interior Architectural Design
Seating Design

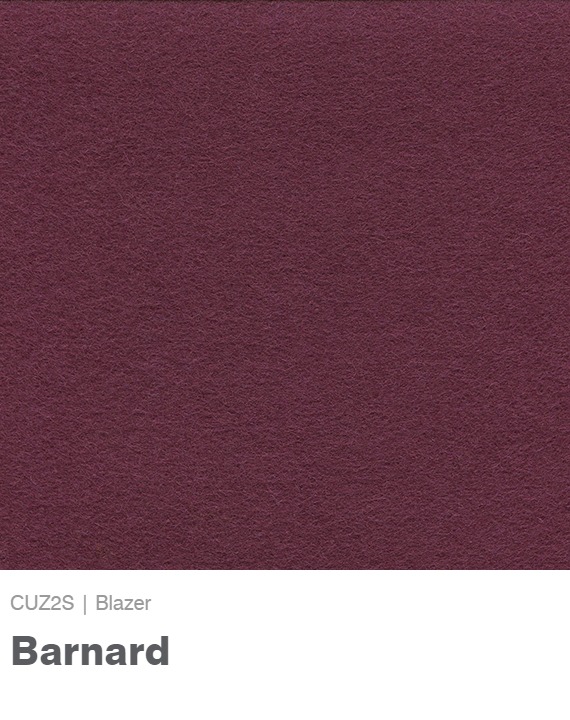

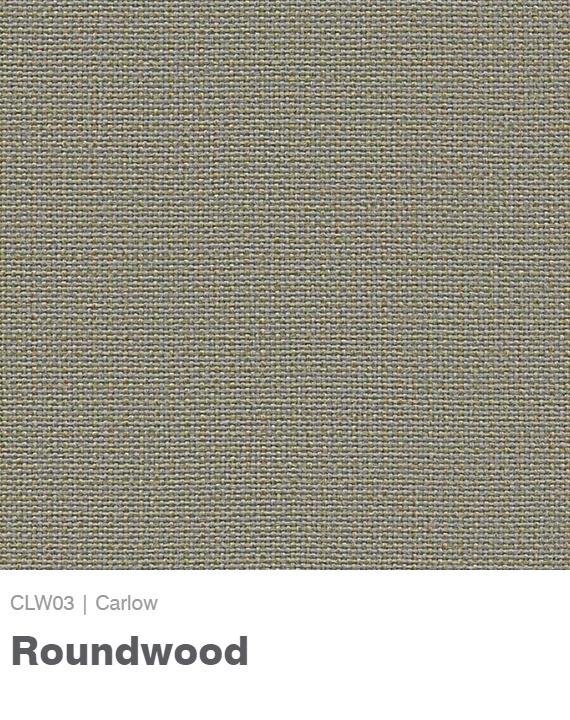

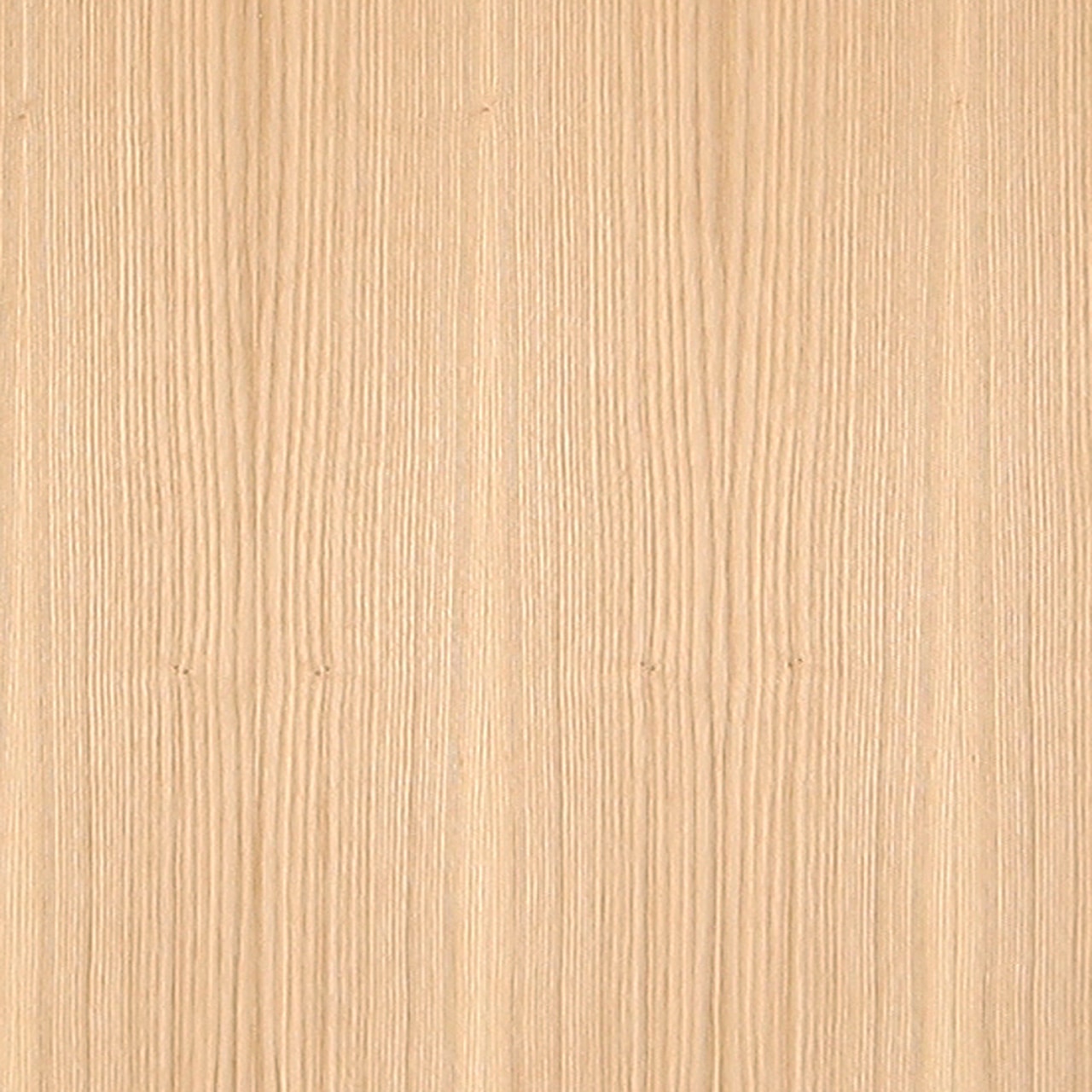

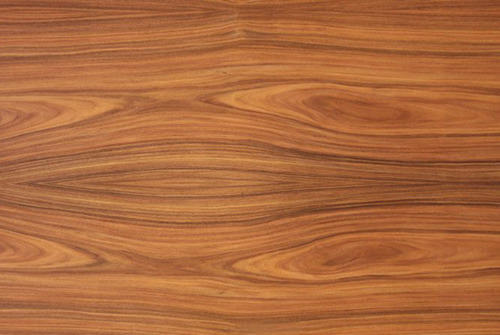

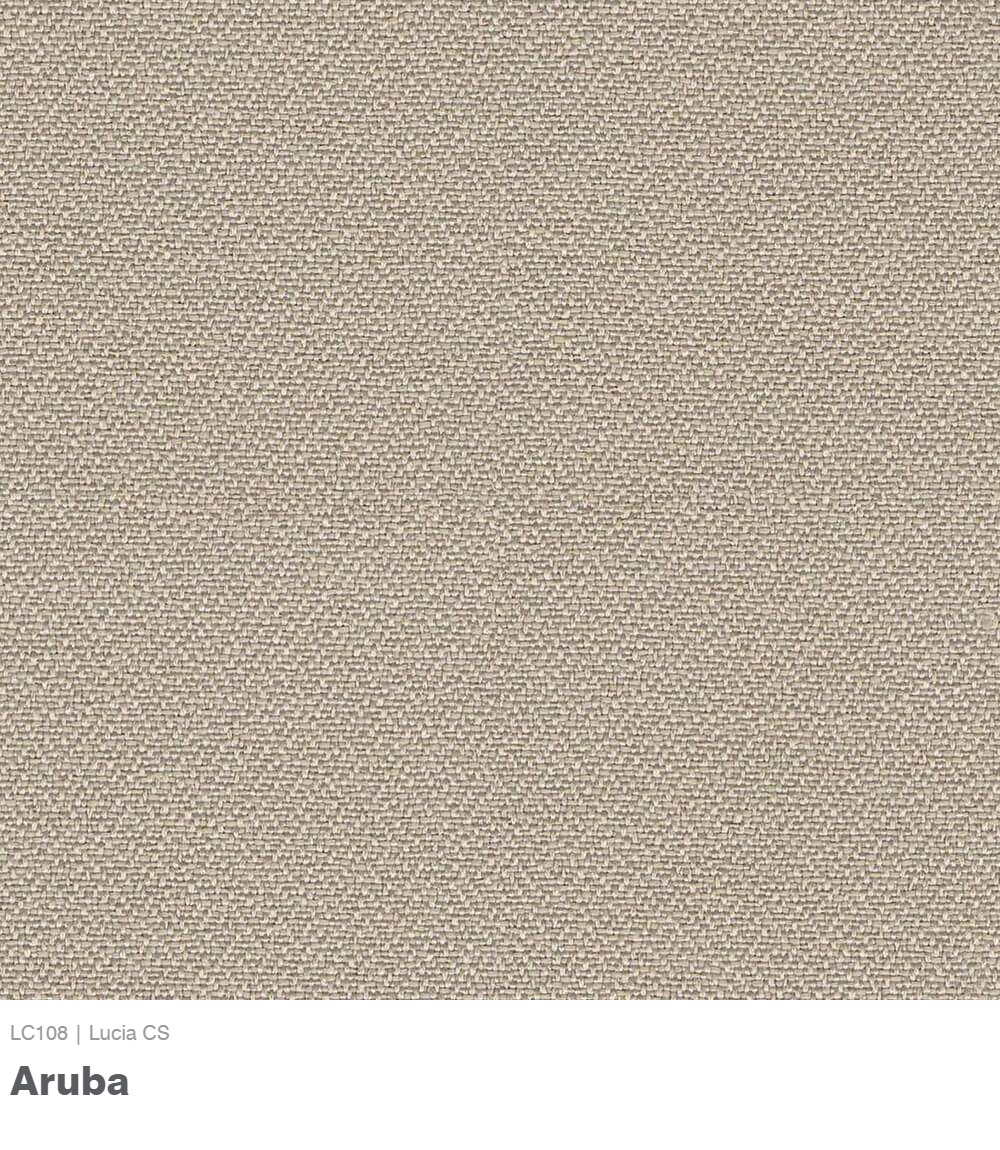

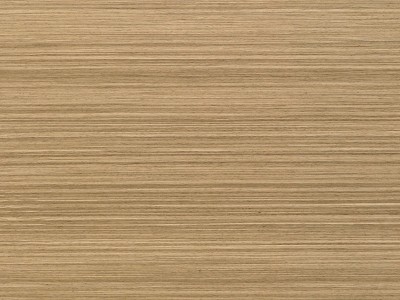

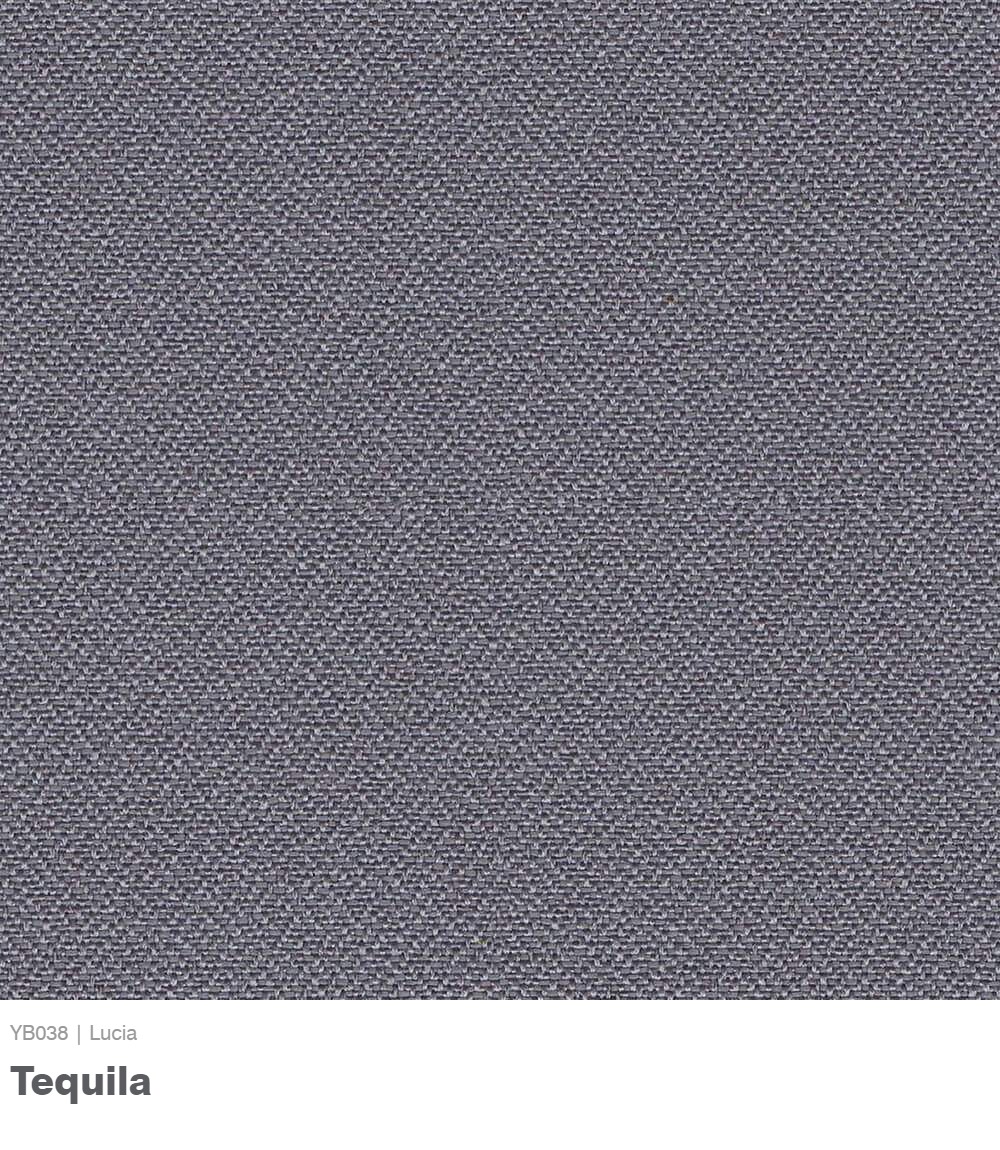

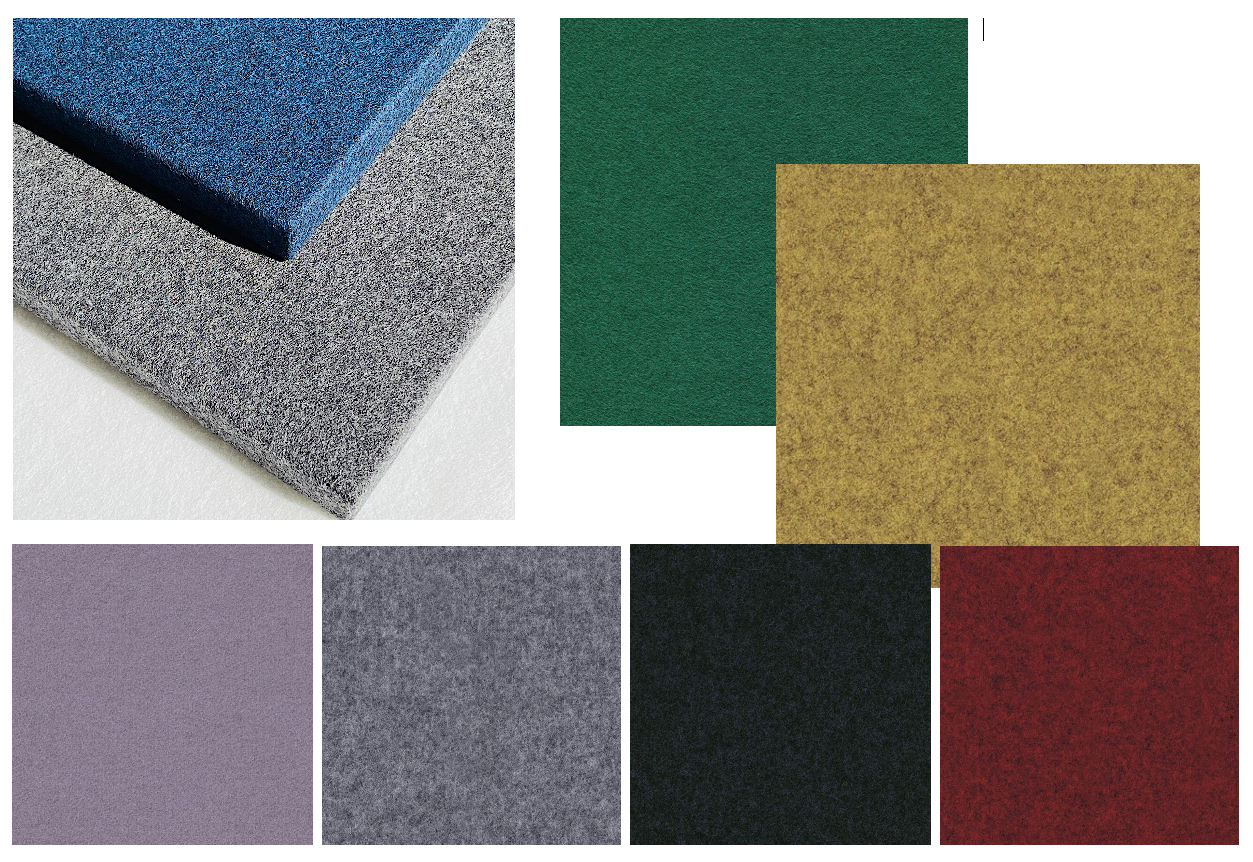

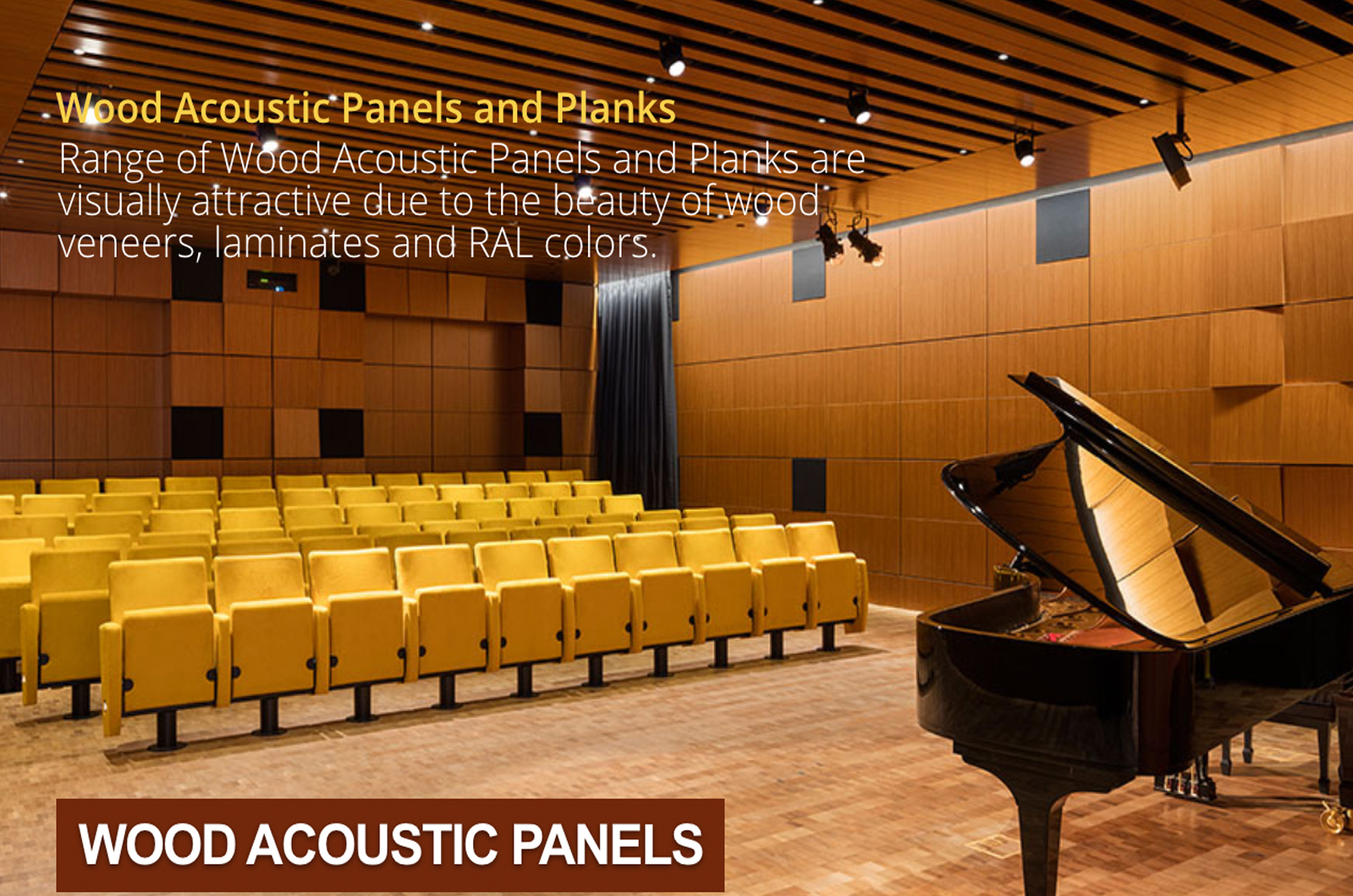

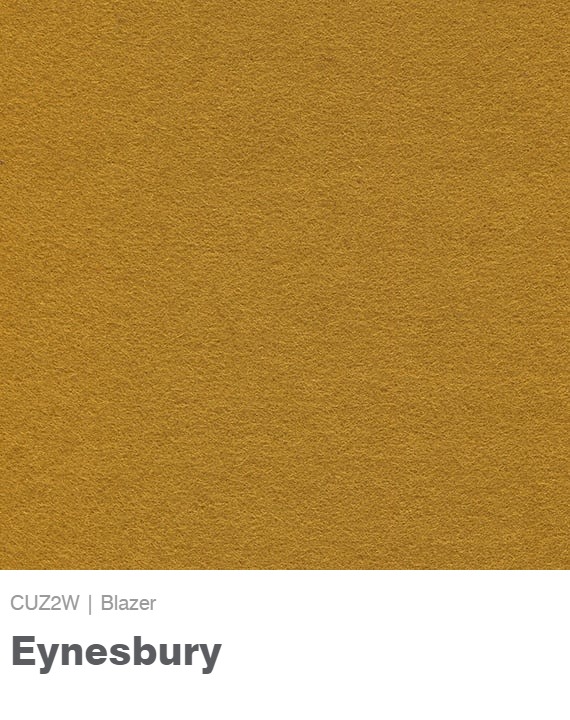

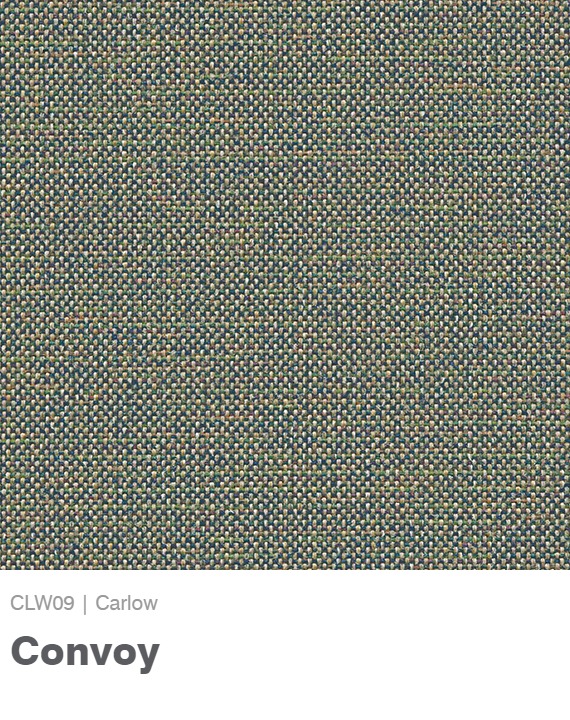

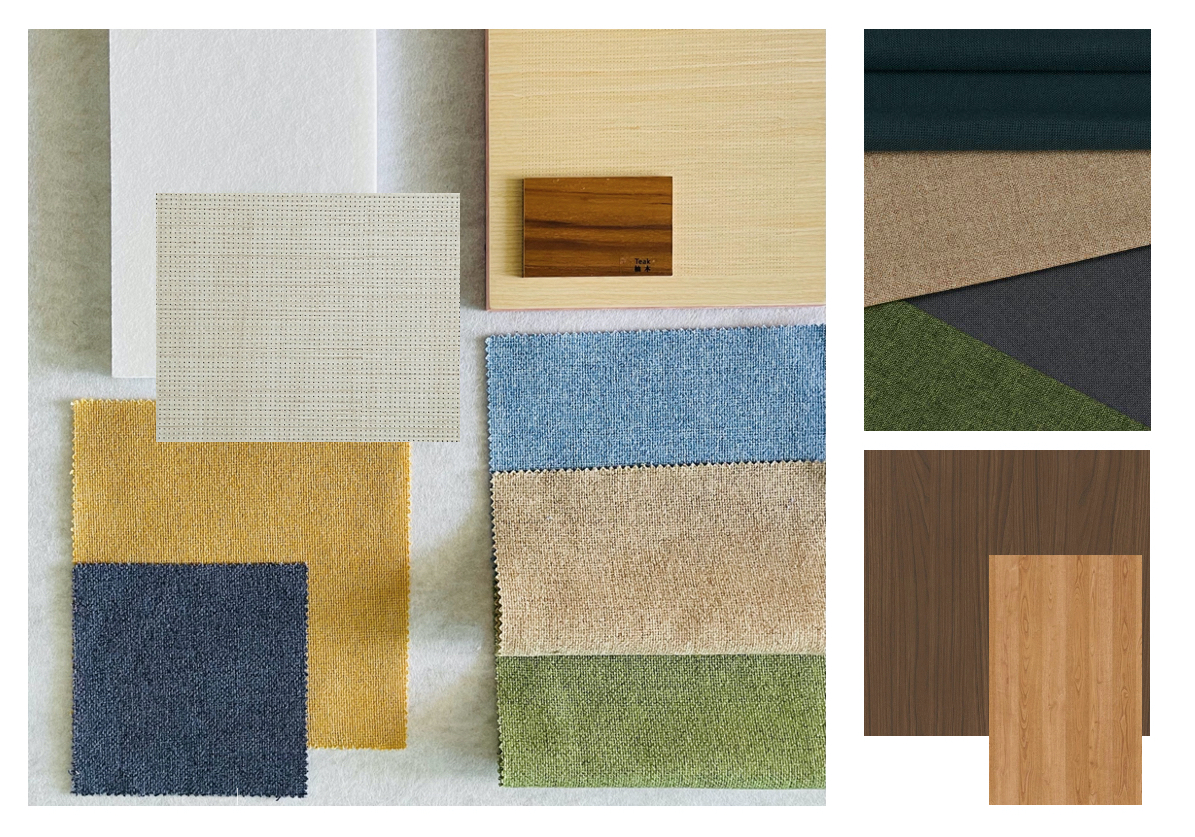

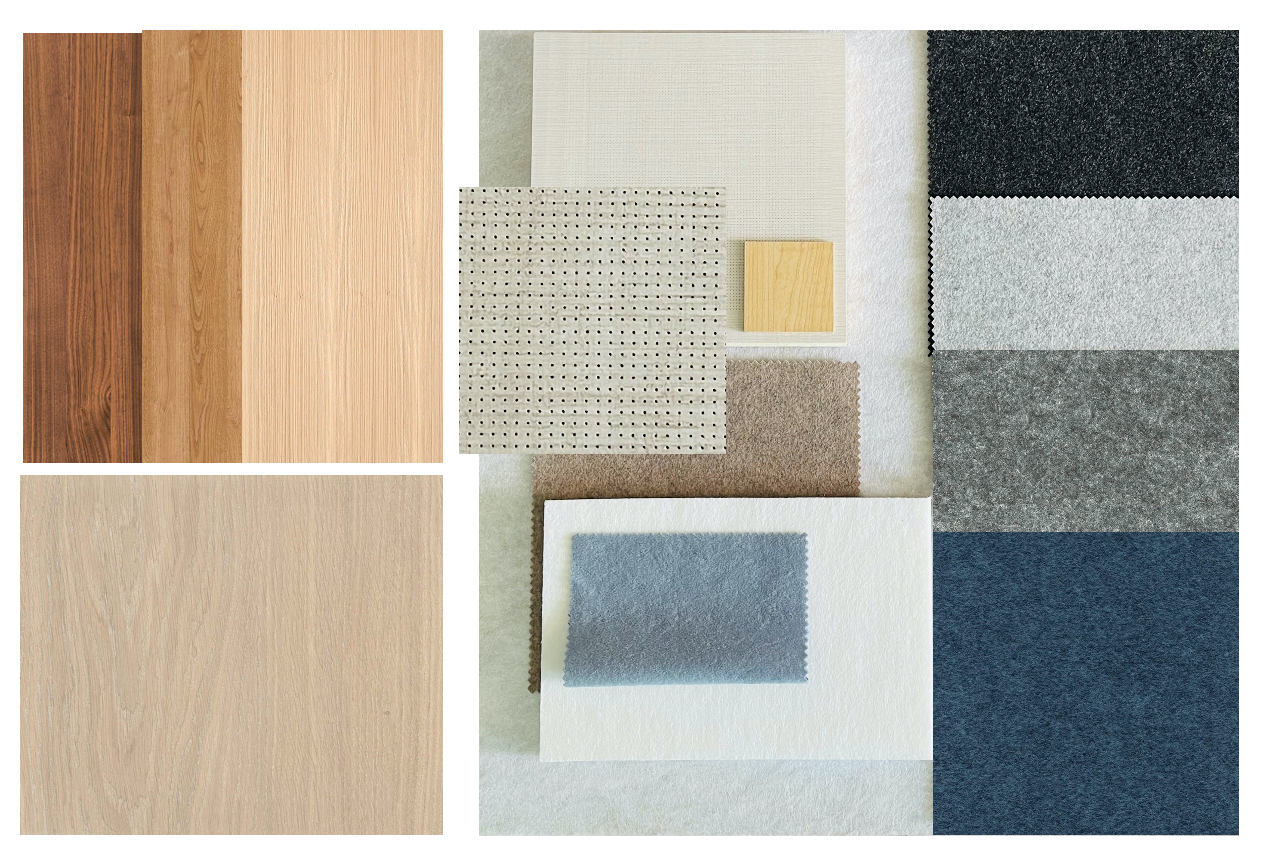

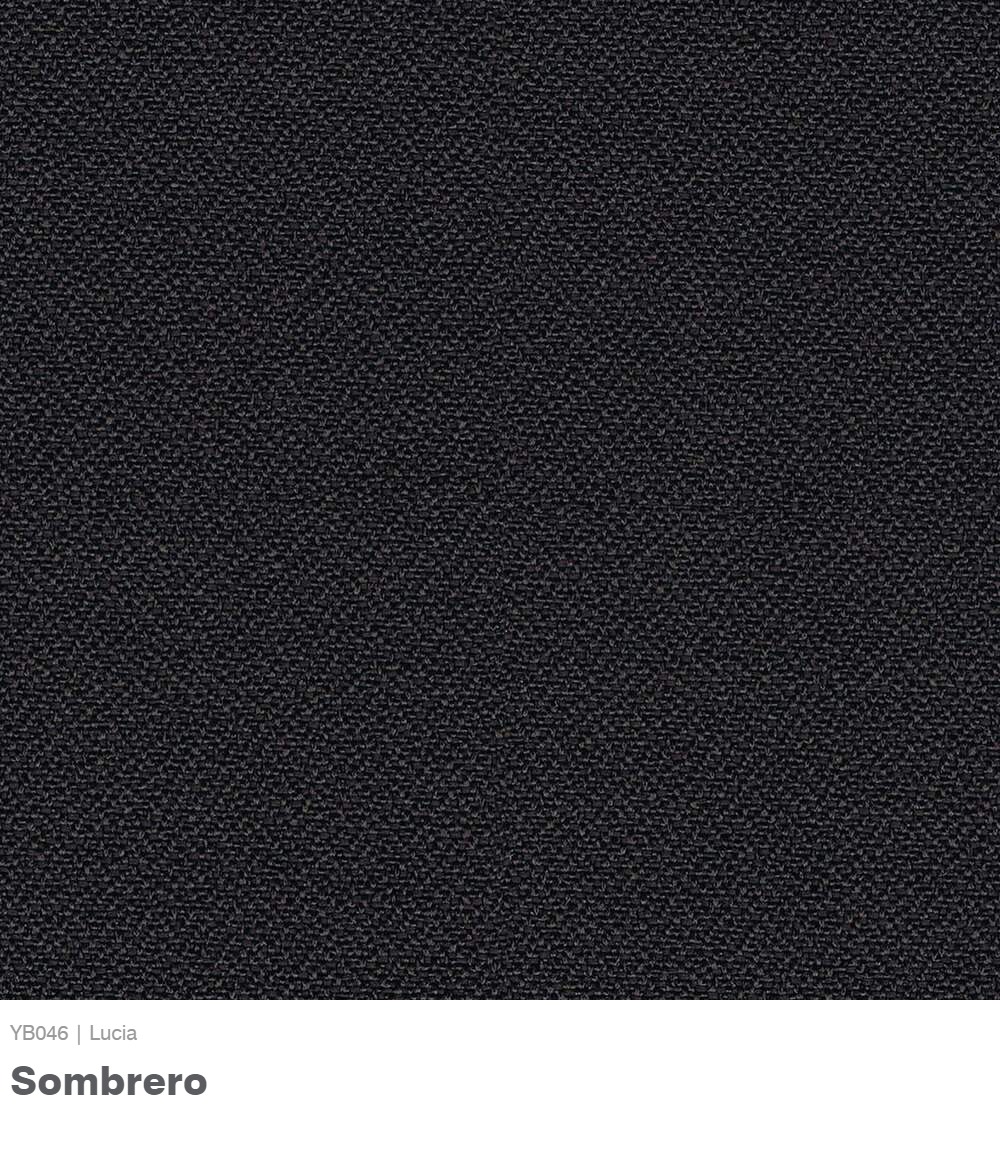

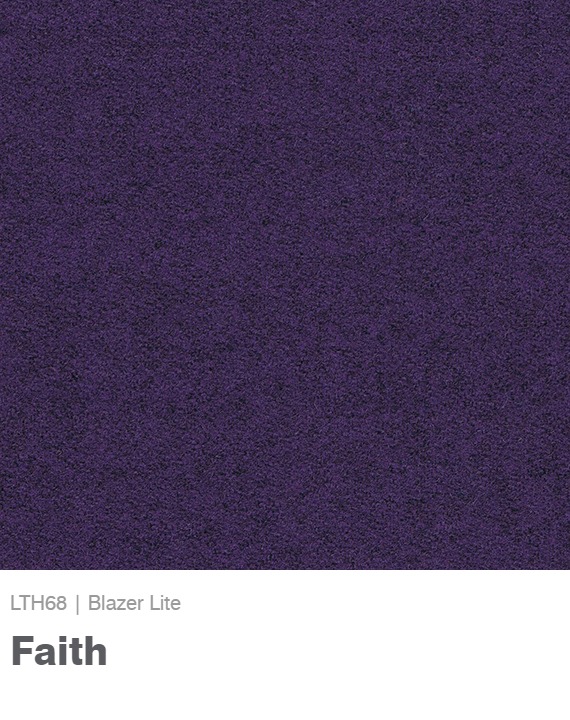

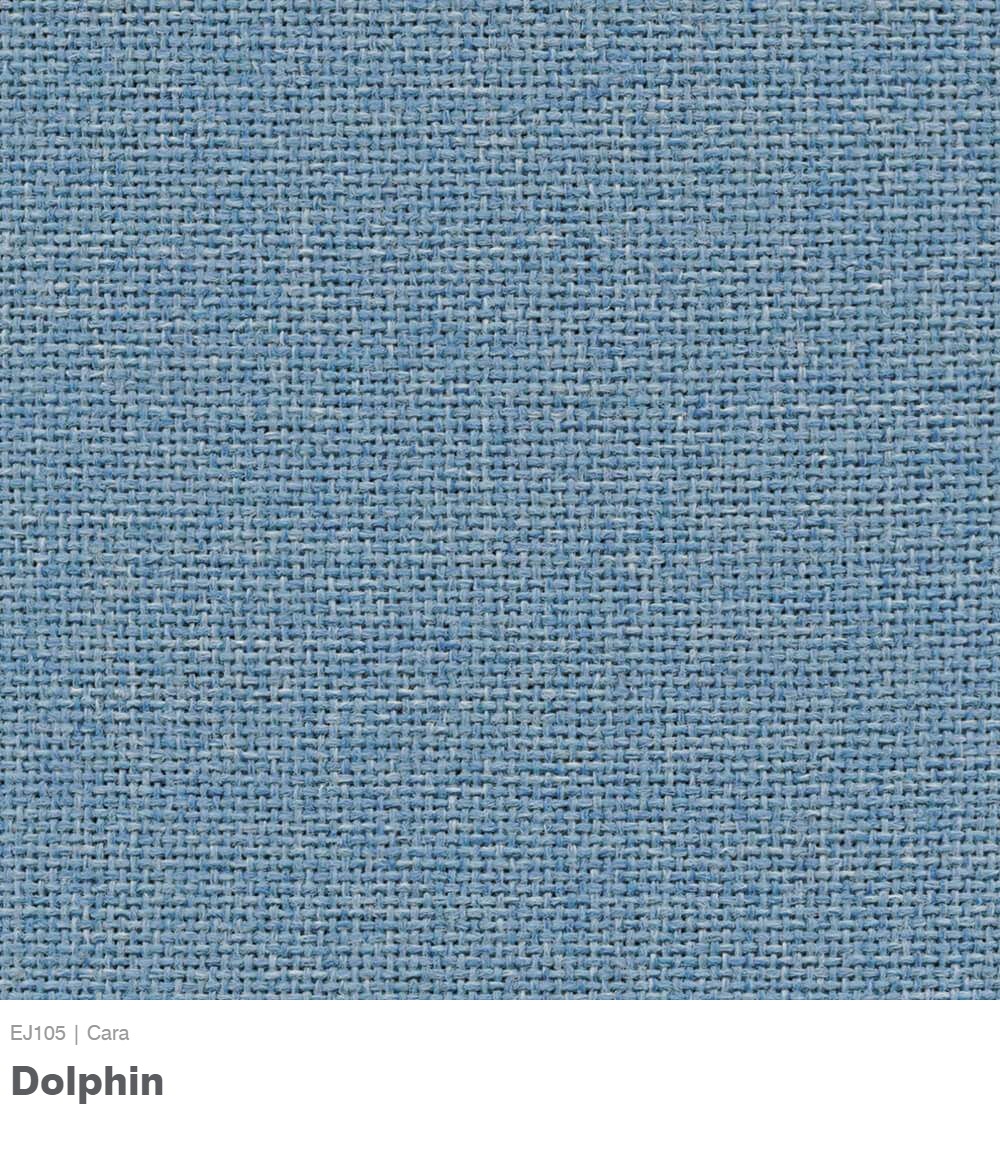

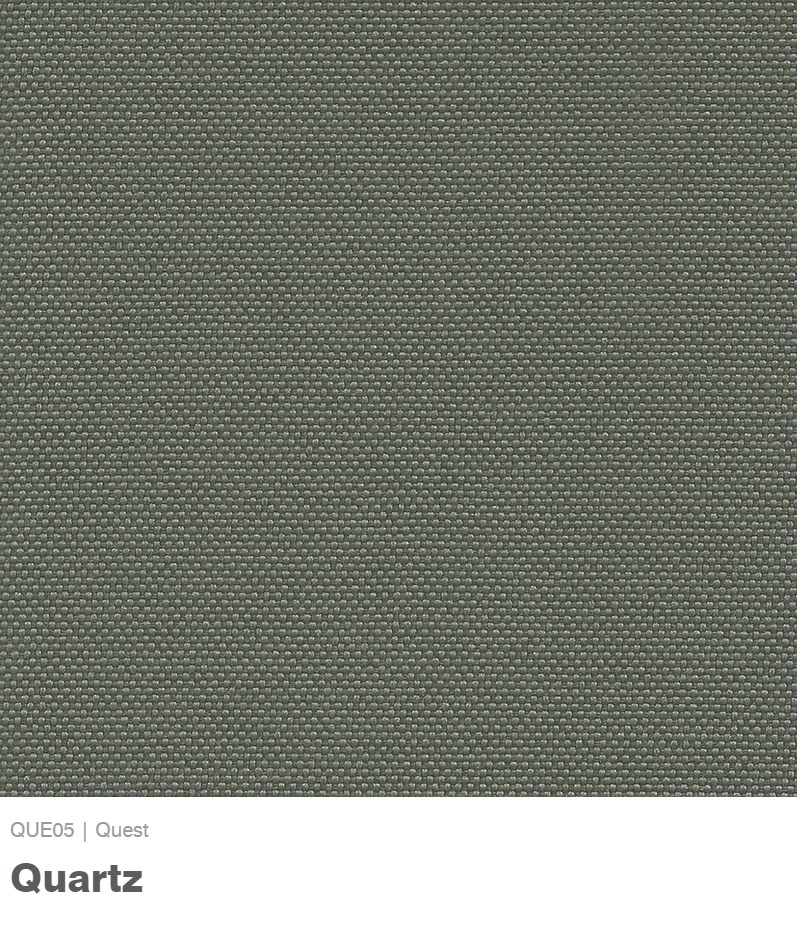

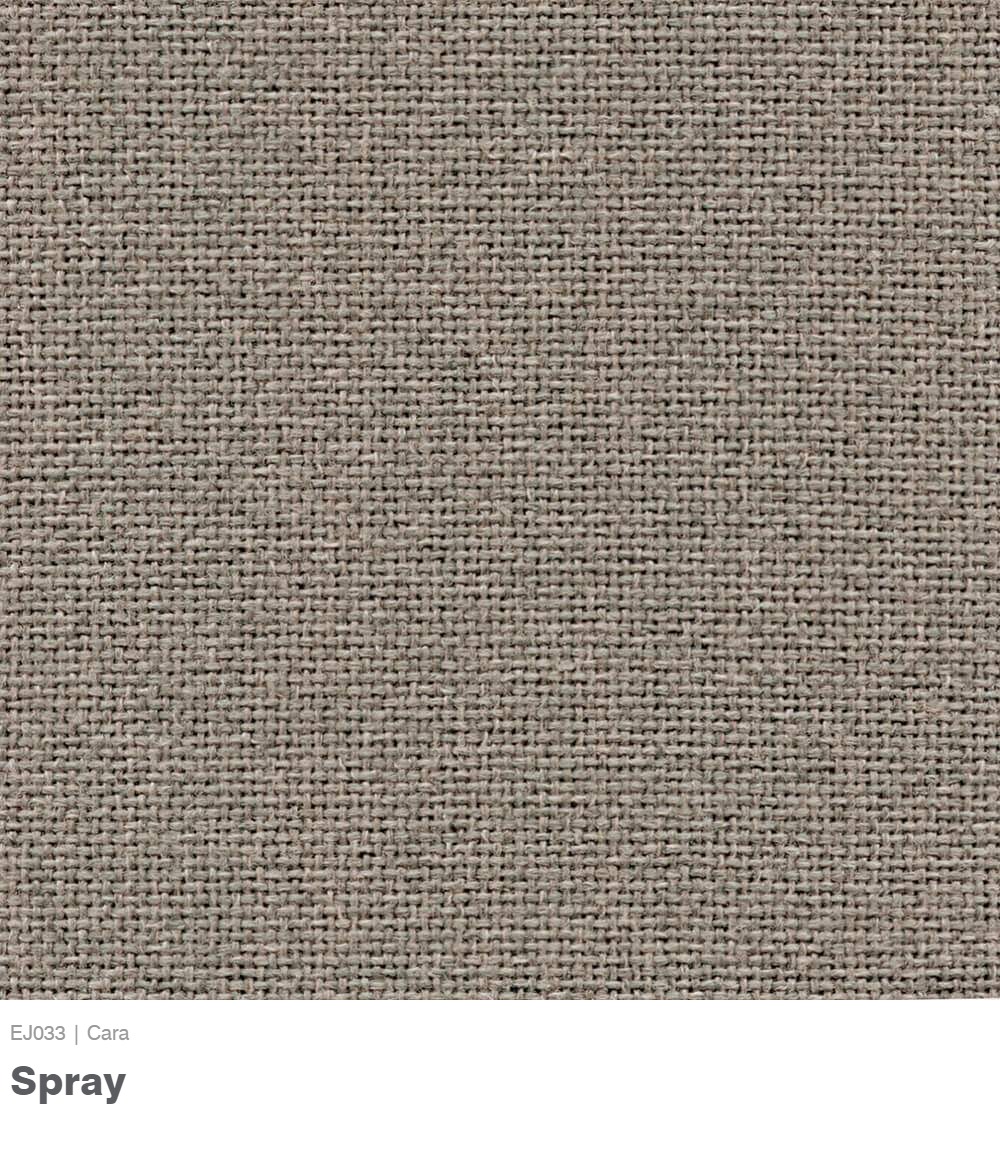

ACOUSTIC PANELS WITH ACOUSTIC FABRICS N FELTS AND NATURAL WOOD VENEERS N LAMINATES FINISHES ARE AVAILABLE IN WIDE RANGE OF COLORS TO SUIT ANY INTERIOR DÉCOR

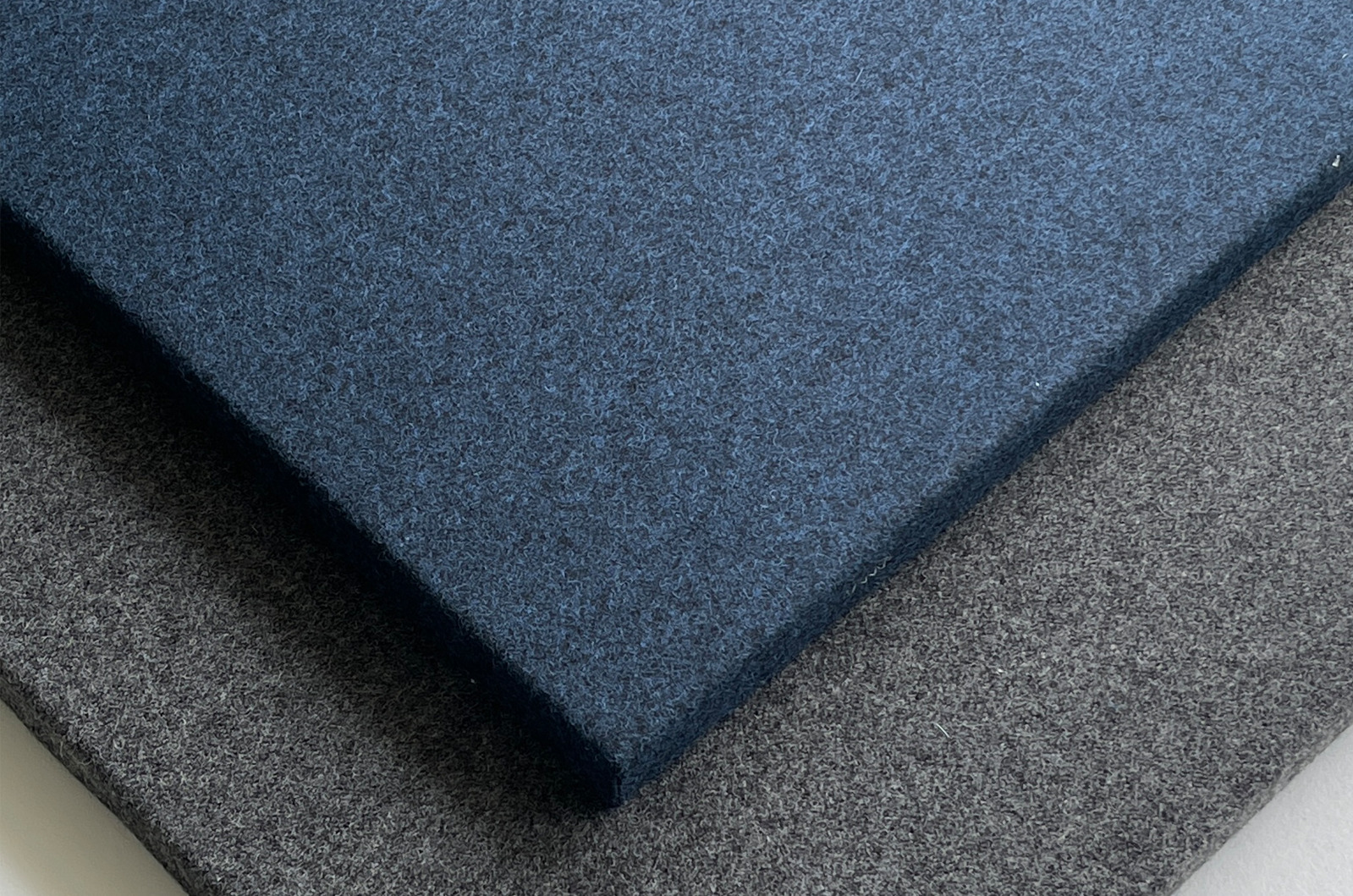

GOLDLINE ACOUSTIC PANELS MADE OF 100% POLYESTER FIBERS AND NATURAL WOOD VENEERS ARE DESIGNED TO CONTROL AND ABSORB VARIOUS LEVELS OF SOUND FREQUENCIES IN ANY ENVIRONMENT TO ELIMINATE ECHO AND CONTROL SOUND REVERBERATION AND MAINTAIN AMBIENT NOISE LEVELS

Suitable for Walls and Ceiling Installation. Our Products offer acoustic performance unmatched by other traditional products due to the compact nature of the HIGH and MEDIUM DENSITY panels achieving higher NRC ratings in a thin panel.

Our innovative products bring environmentally-friendly alternatives as new eco-friendly products with premium performance.

Acoustic Performance

Manufactured by state of the art technology of needle punching and thermally bonding using recycled polyester fiber and virgin polyester fiber for excellent acoustical performance, fire rating, moisture resistance and lifelong durability.

Availability

GOLDLINE FABRIC COVERED ACOUSTIC PANELS are available in 12, 25 and 50mm thicknesses options, offers complete design flexibility and acoustical performance ratings ranging from NRC 0.40 – NRC 0.70 and NRC 0.97 respectively.

Finishes

Wide range of Finishes to suit any design requirements, fine interior furnishing and decorative solutions.

Applications

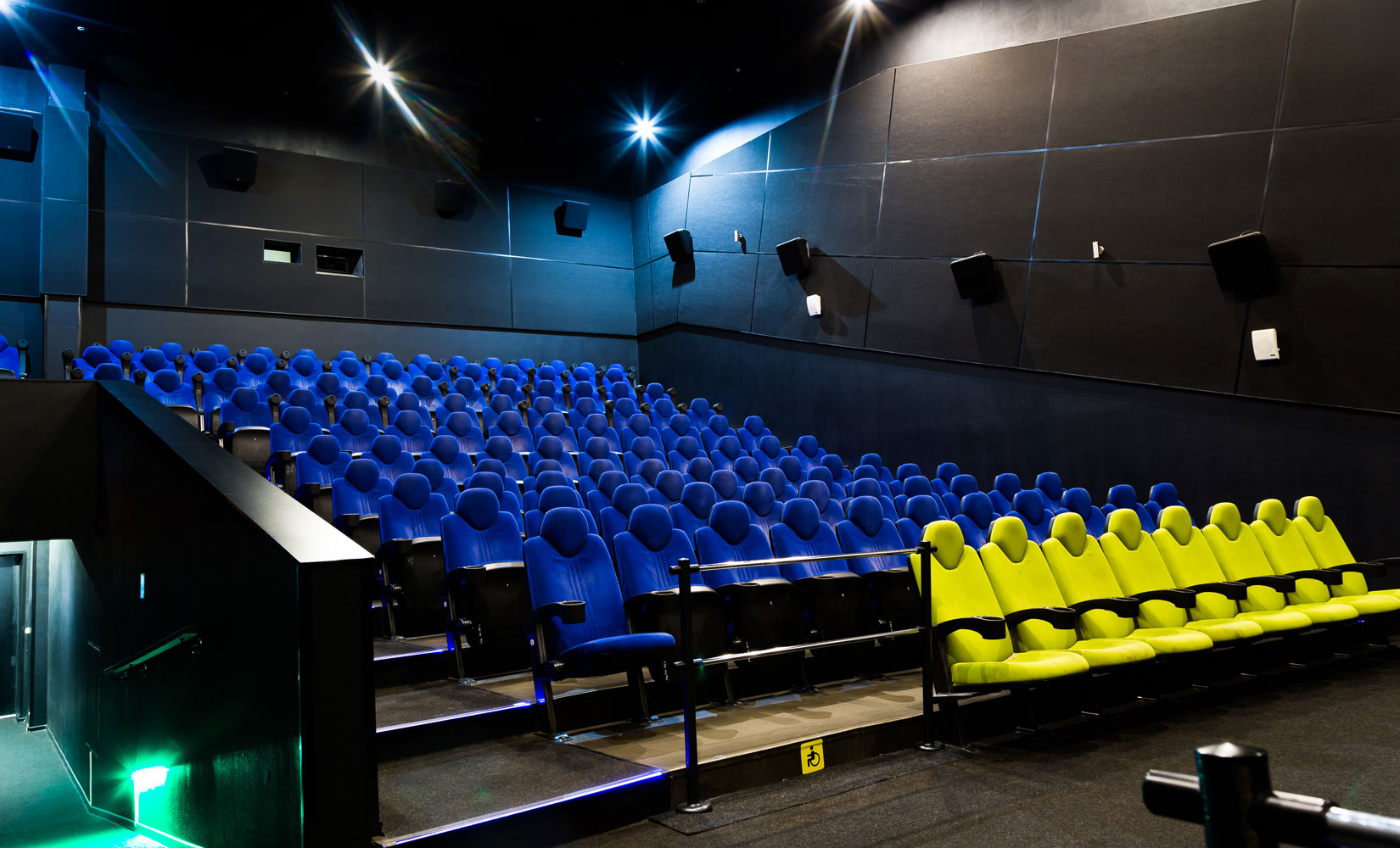

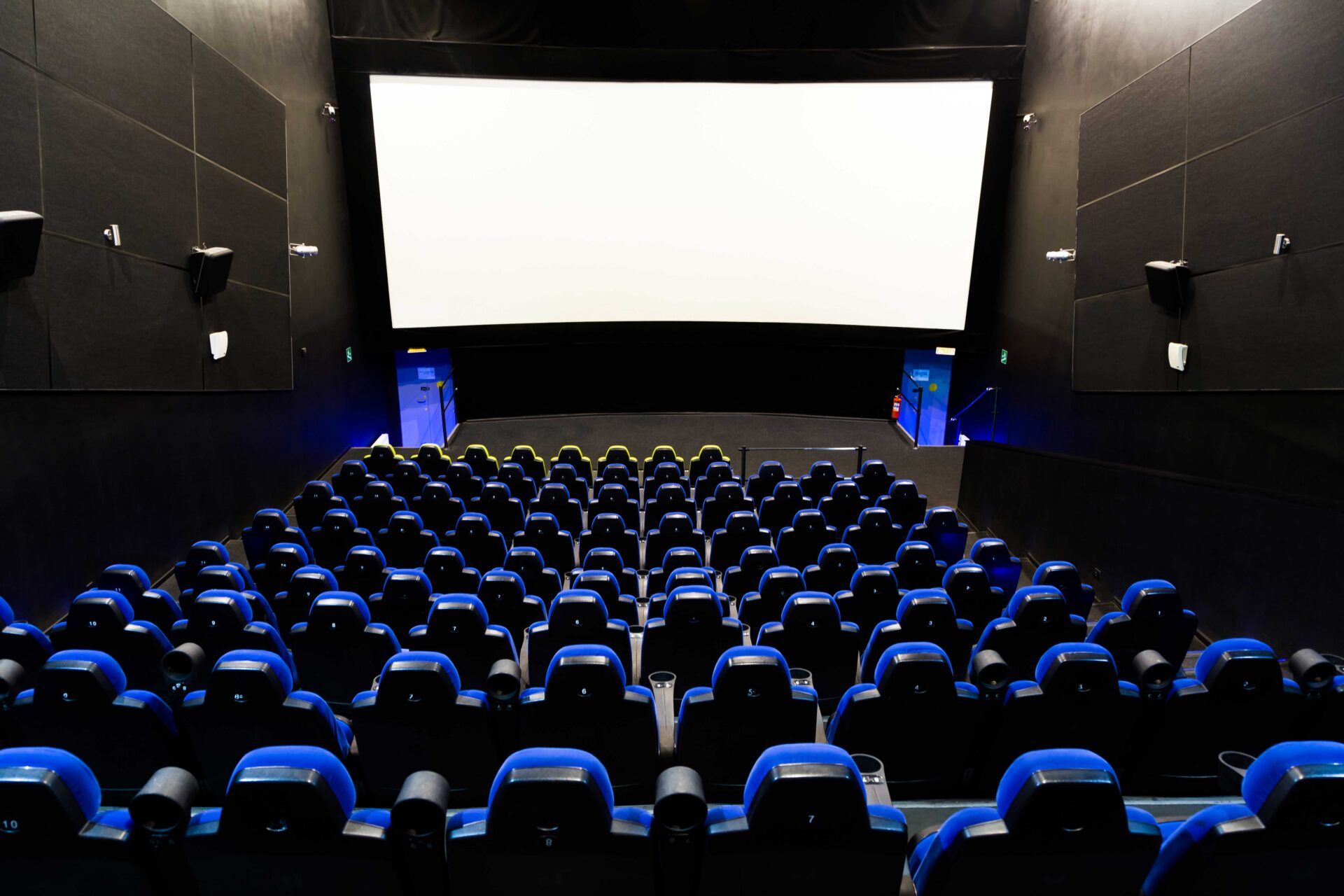

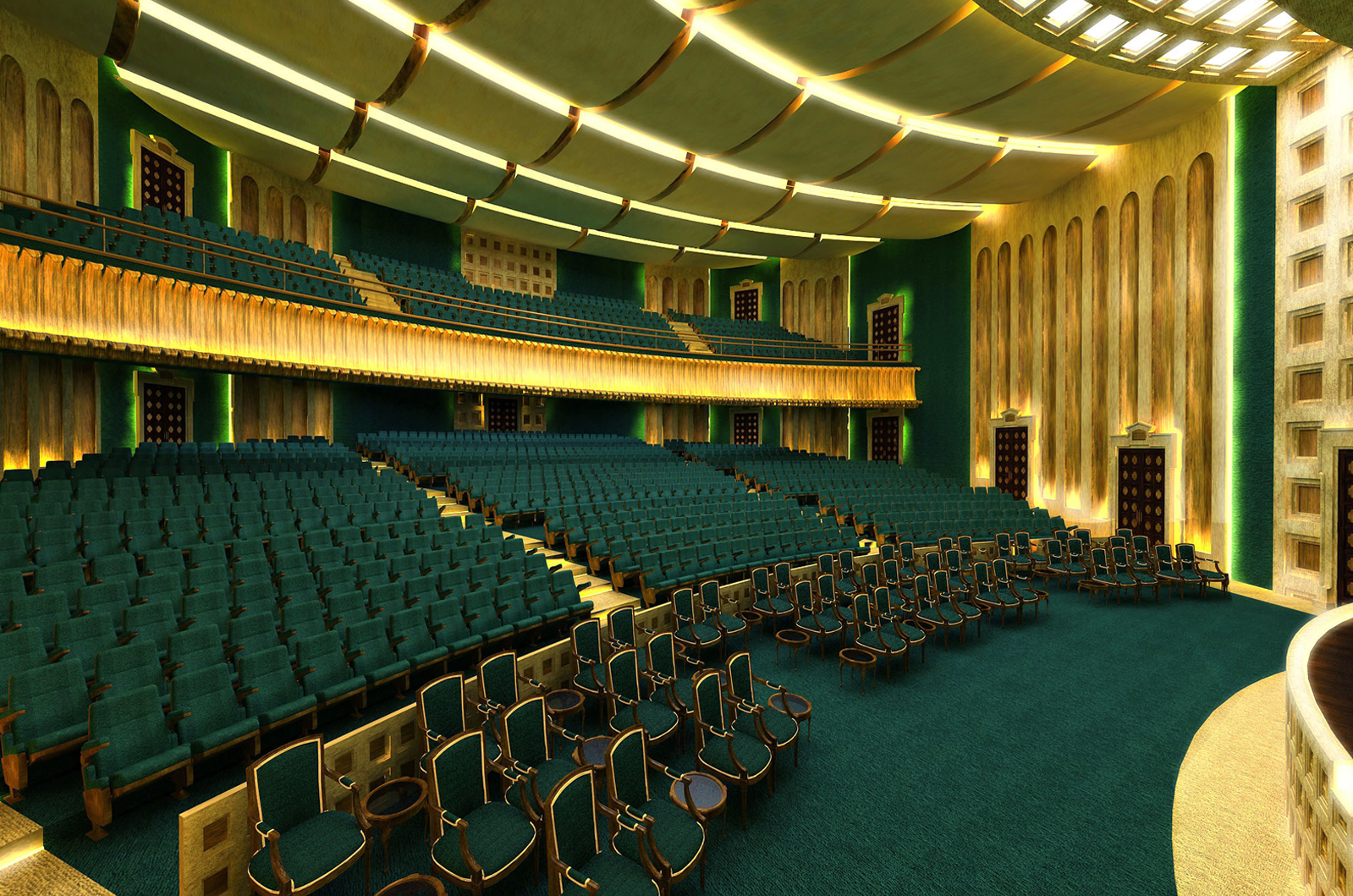

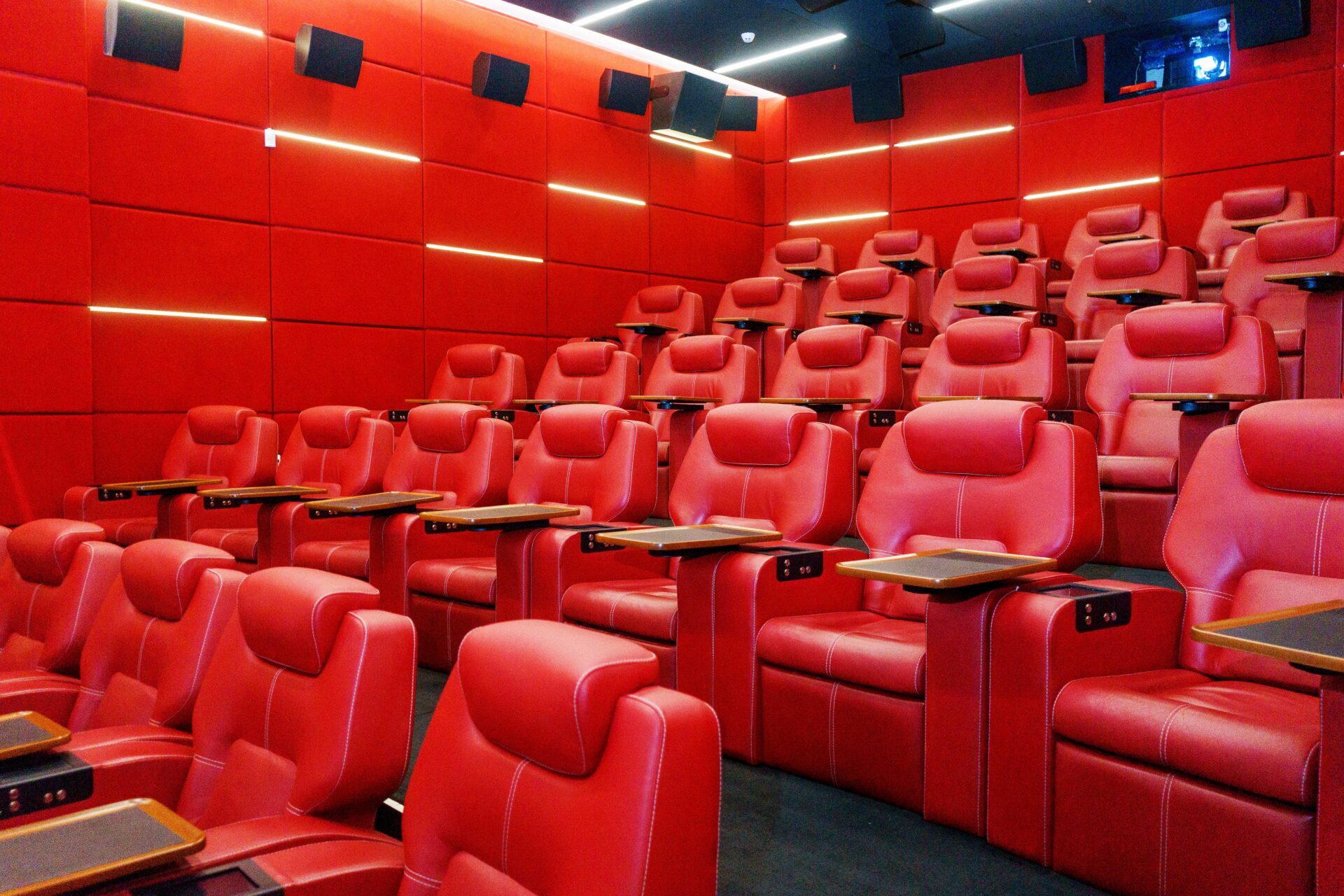

GOLDLINE AUDITORIUM ACOUSTIC PANELS are the Premium Solutions for Controlling Ambient Reverberated Noises and Sound Transmission for:

  • Entertainment
  • Educational
  • Healthcare

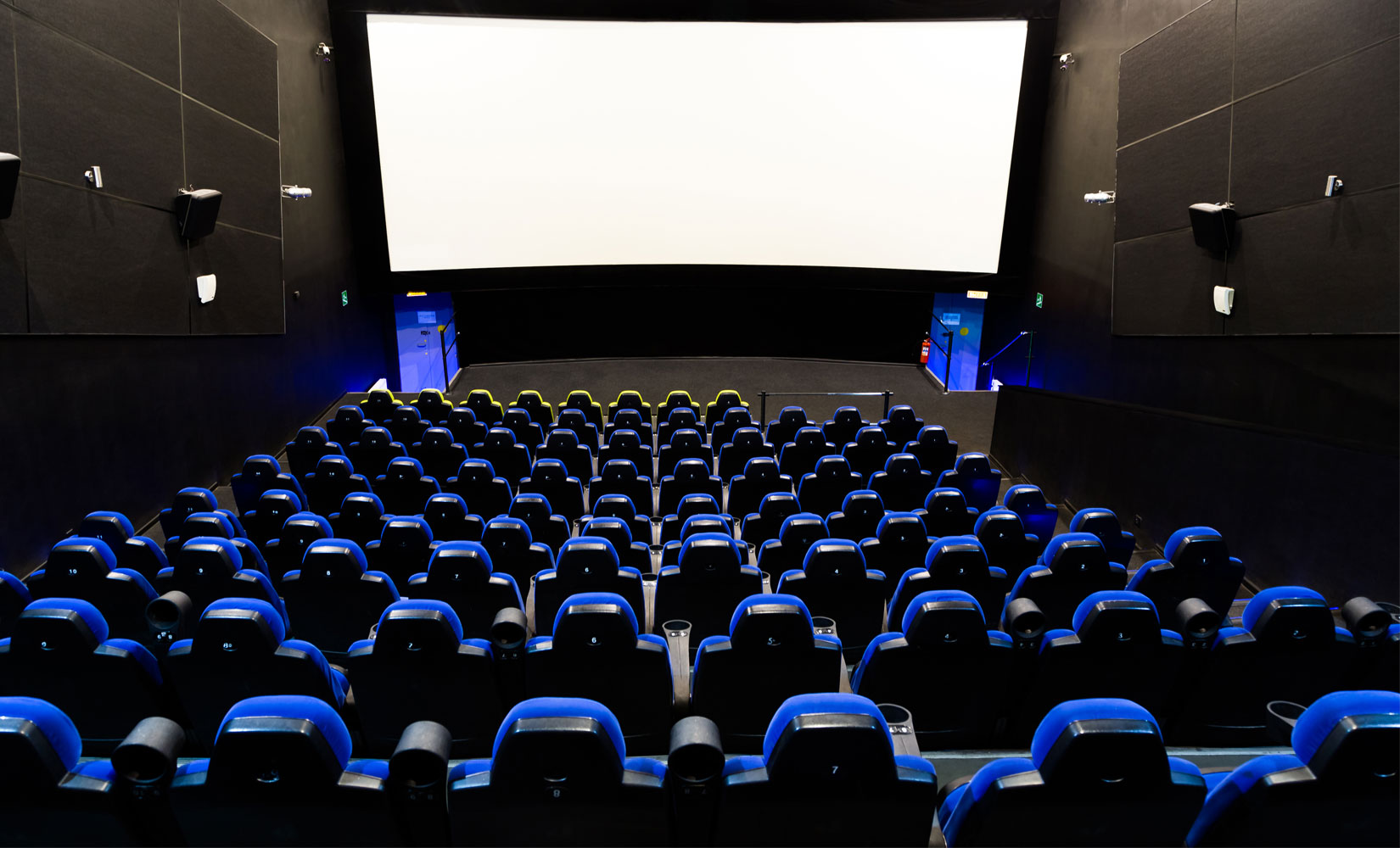

  • Auditoriums, Cinemas & Theaters
  • Conference and Meeting Areas
  • Multimedia Presentation Environments
  • Every area where sound matters

Possibilities

Limitless branding and design possibilities with in-house custom cutting and size customization.

Specifications

GOLDLINE WOOD ACOUSTIK Pro and GOLDLINE SOUND ABSORPTION SYSTEMS are the most advanced and efficient absorbing products available today for reducing reverberant noise levels in many environments. GOLDLINE SOUND ABSORPTION SYSTEMS are Acoustically Tested as per ASTM 423-09A and Fire Rated Test as per ASTM E84 and Anti Fungi (Moisture Resistant) Test as per C1338.

Product Specifications

Fire Rating

Class A NFPA 101 Life Safety Code

Fire Test Certified

ASTM E84-90A Equivalent to NFPA No. 255 and UL No. 723

Flame Spread Index

0 – 25 Flame Spread Index

Fungi Resistance Certified

ASTM C 1338 – 08

Smoke Developed Index values

0 – 450 Smoke Developed Index

LEED Rating

MER V 4.1 Rating

Installation

Any Smooth Surface

Mechanical Installation

GOLDLINE Anchor System

Components

Polyester Resin

CAS NO.

68604-67-1

Percent Range

90-95%

OSHA regulations

NOT hazardous according OHSA29CFR1910.1200

HMIS Ratings

Health 0 Flammability 0 Reactivity 0

Primary Route of Exposure

None

Eye contact

No adverse effects expected

Skin Contact

No adverse effects expected

Inhalation

No adverse effects expected

Ingestion

No adverse effects expected

Medical Conditions Aggravated by Exposure

None expected

PHYSICAL AND CHEMICAL PROPERTIES

GOLDLINE POLYESTER SOUND ABSORPTION ACOUSTICAL SYSTEM

ODOR

None

Physical state

Solid

Vapor Pressure

None

Vapor Density(air-1)

Not Applicable

pH

Not Applicable

DOT Corrosivity

Not Applicable

Percent Volatile by Volume

<1%

VOC- Volatile Organic Content

<1%

Molecular Weight

Not Applicable

Boiling Point

Not Applicable

Melting Point

220C

Specific Gravity

>1.0

Average Carbon Number

Not Applicable

Viscosity@100F

Not Applicable

Viscosity@40C

Not Applicable

Pour Point

Not Applicable

Solubility in water

Not Soluble

Octanol/Water Coefficient

None

Chemical Stability

Stable

Conditions to Avoid

None

Incompatible Materials to Avoid

None

Hazards in Blend:

Not Hazardous

Sizes & Thicknesses and Shapes & Forms

ThicknessBoard WidthBoard Length
9mm
12mm
1200mm
1200mm
600mm
2400mm
1200mm
1200mm
25mm1200mm
1200mm
1200mm
600mm
2400mm
2700mm
1200mm
1200mm
50mm1200mm
1200mm
2400mm
1200mm

Complementary Products

GOLDLINE FABRIC COVERED PANELS

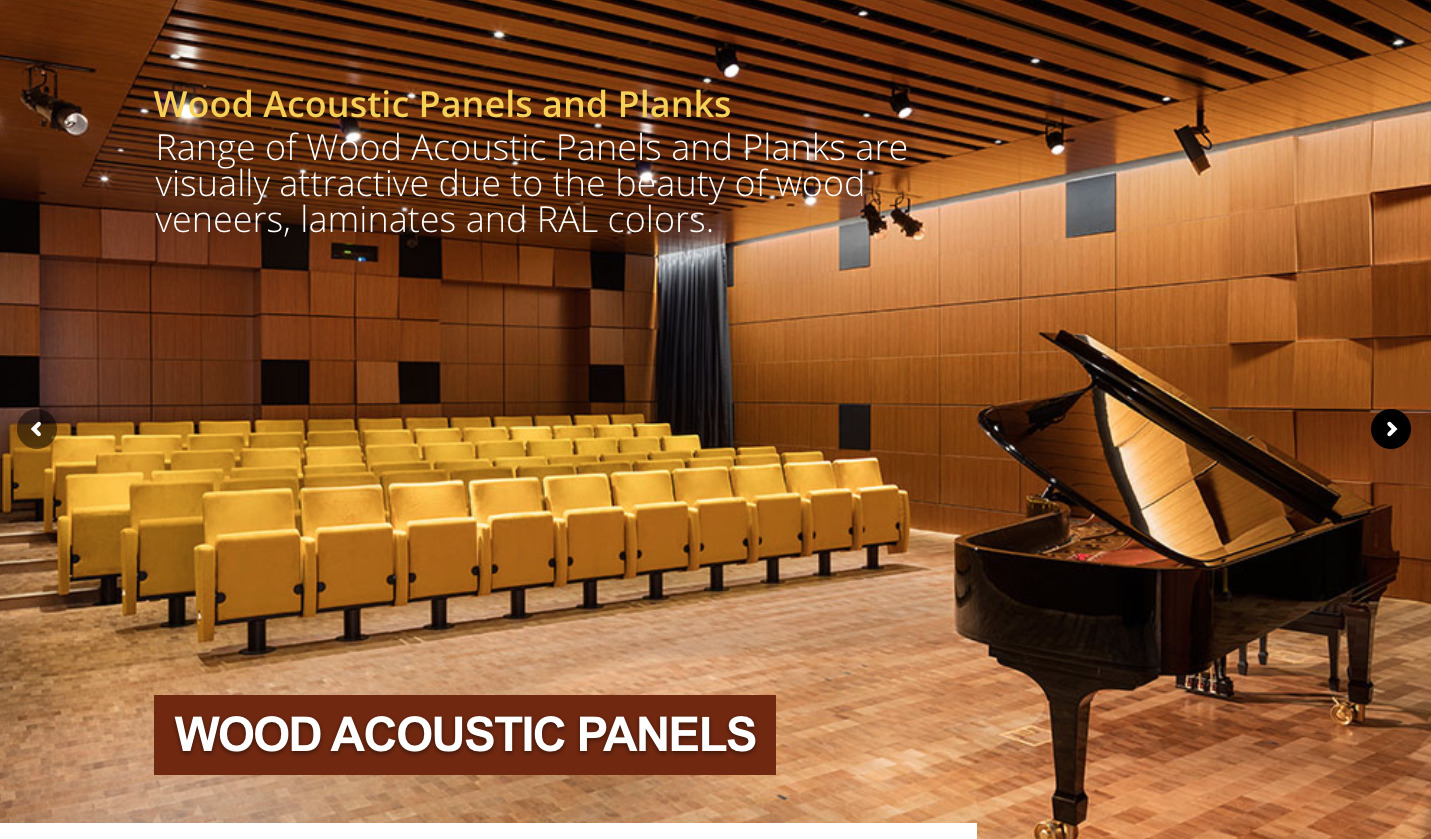

GOLDLINE WOOD ACOUSTIC PRO PANELS

GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS, BAFFLES
