The Next Generation Technological GREEN Product Designed to assist the Designers achieve Noise Comfort Levels / Acoustical Comforts in the Modern Working, Entertainment and Living Environments

GOLDLINE SOUND BARRIER IS MADE OF 100% POLYESTER FIBERS DESIGNED TO CONTROL AND ABSORB LOW AND HIGH LEVELS OF SOUND FREQUENCIES IN ANY ENVIRONMENT.

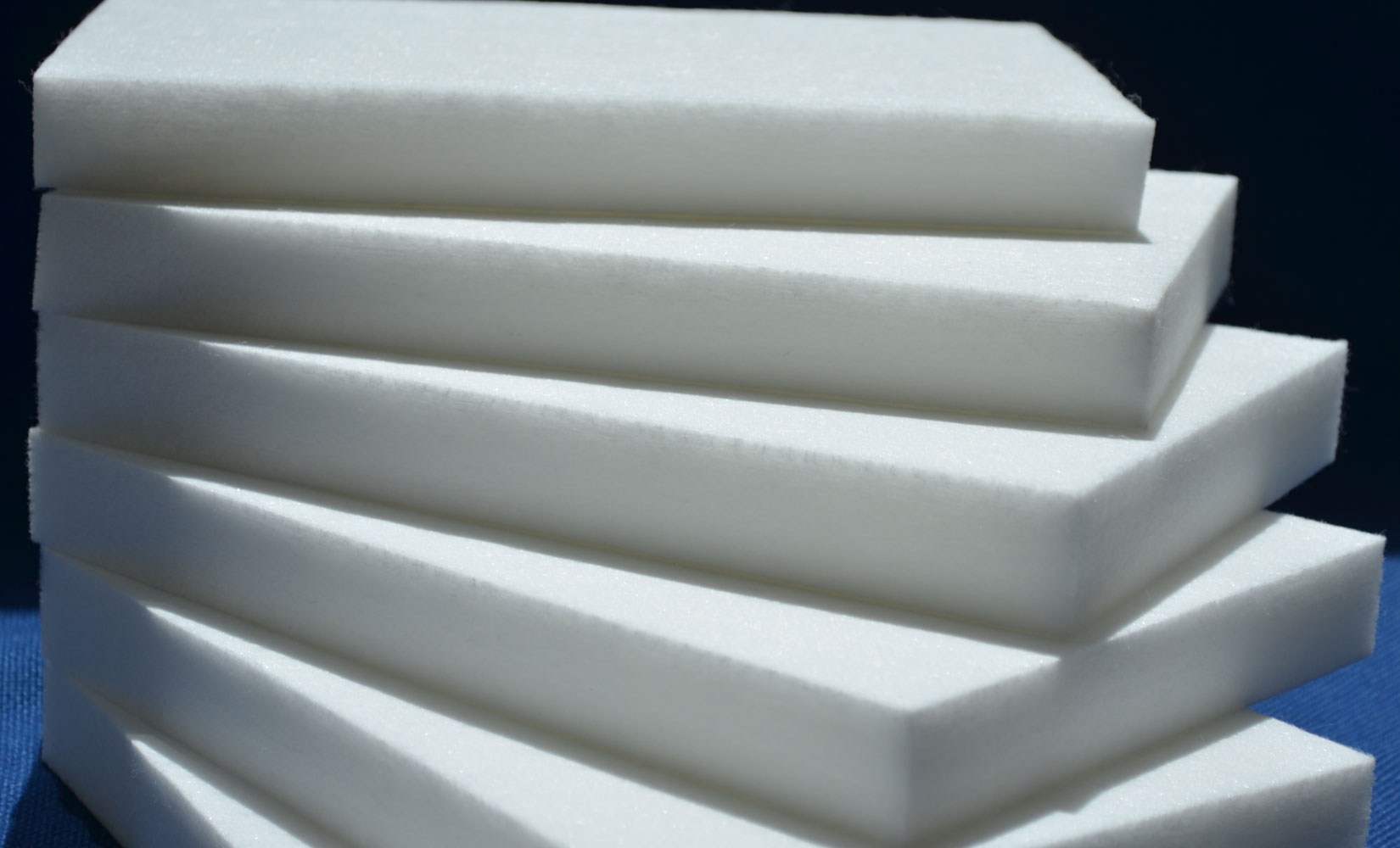

Sound Barrier is an Acoustic Board Designed and Manufactured for the Construction of Walls and Ceiling.

Our Products offer acoustic performance unmatched by other traditional products due to the compact nature of the HIGHER DENSITY Boards achieving high NRC ratings in a thin panel.

Our innovative products bring Environmentally Friendly Alternatives as new eco-friendly products with premium performance.

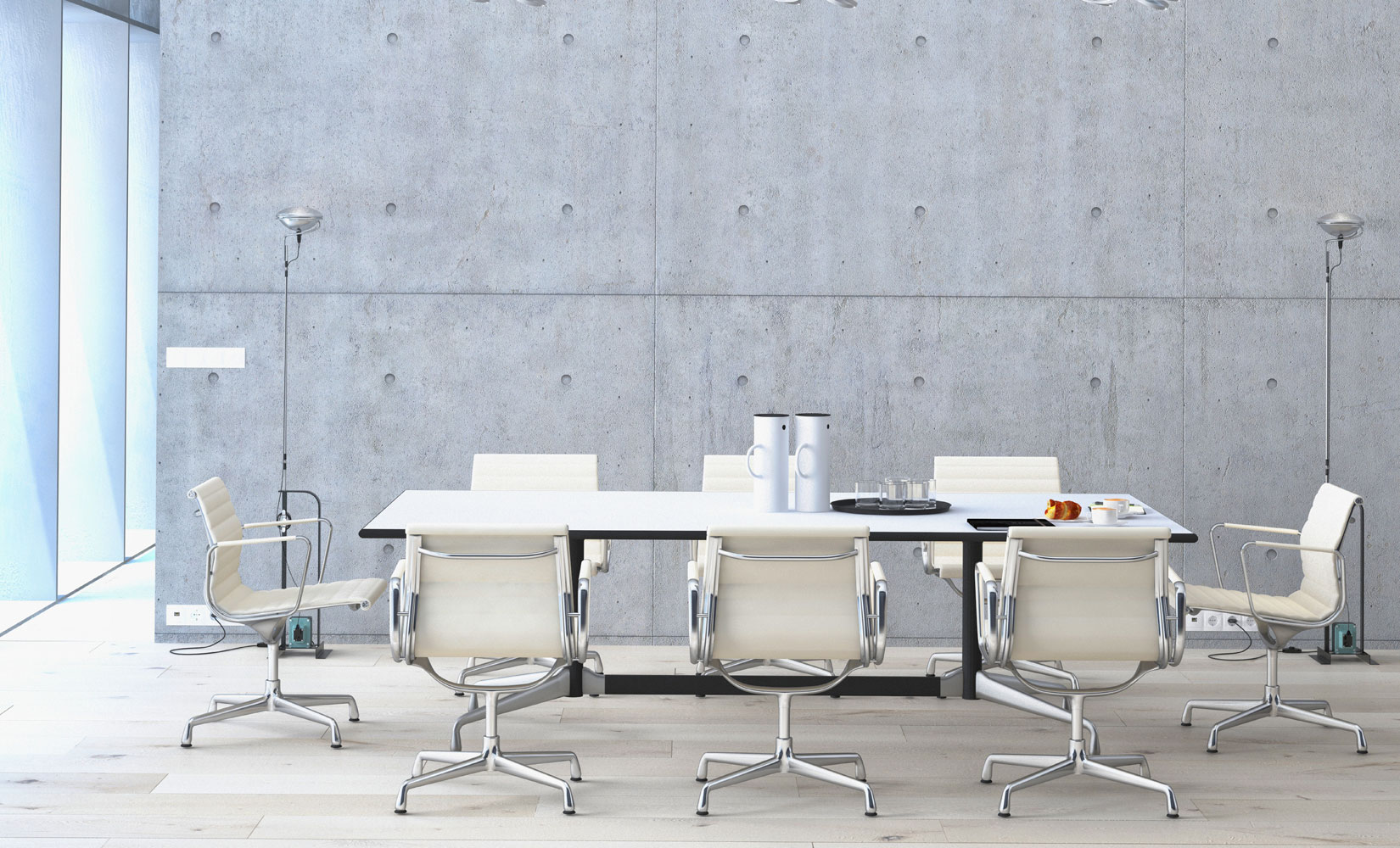

OFFICES for productivity and privacy / confidentiality & noise control

SEMINAR and MEETING ROOMS

HOTELS Restaurants, Lobbies, Guest Rooms, Banquet Halls, Business Centers, Airport Lounges

AUDITORIUM / CONFERENCE CENTERS

EDUCATIONAL FACILITIES Class-rooms, Lecture Halls , Libraries and Examination Halls

HEALTH CARE FACILITIES Waiting Areas, Examination Rooms

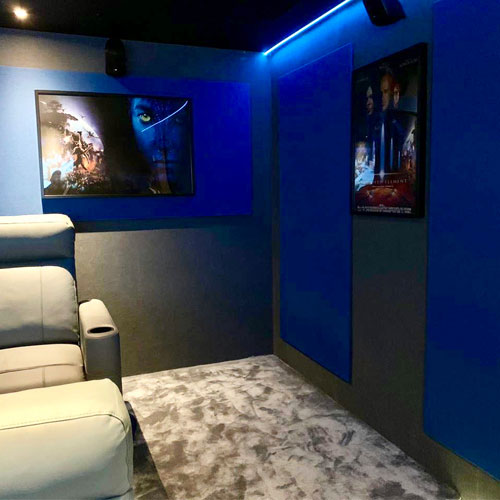

Music Rooms, Cinemas, Recording Studios and Home Theaters

SOUND TRANSMISSION CONTROL – WALLS AND CEILINGS WITH SOUND BARRIER AS INTERMEDIATE LAYER FOR SOUND CONTROL

GOLDLINE SOUND BARRIER FOR DRYWALL PARTITIONS

SOUND BARRIER – Install 2 LAYER as INTERMEDIATE LAYER BETWEEN the 2 GYPSUM BOARD (SHEETS) DRYWALL PARTITIONS for Noise Transmission Control between ROOMS – 10/12mm Thick – High Density, Rigid, 100% Polyester Board – Size 1200mm x 2400mm in Snow WHITE Color with Smooth Surface Finish

GOLDLINE SOUND BARRIER FOR GYPSUM BOARD CEILING

SOUND BARRIER – Install 1 LAYER as INTERMEDIATE LAYER BETWEEN the 2 GYPSUM BOARD (SHEETS) CEILING for Noise Transmission Control between ROOMS – 10/12mm Thick – High Density, Rigid, 100% Polyester Board – Size 1200mm x 2400mm in Snow WHITE Color with Smooth Surface Finish

Can Take These Finishes

Limitless Finishing possibilities like

Paints

Stucco Textures

Wall papers

Fabrics

Felts

Wood Cladding

Sonus

Specifications

GOLDLINE SOUND ABSORPTION SYSTEMS are Acoustically Tested as per ASTM 423-09A and Fire Rated Test as per ASTM E84 and Anti Fungi (Moisture Resistant) Test as per C1338

GOLDLINE SOUND ABSORPTION SYSTEMS are light-weight, having high and medium densities, semi-rigid, impact resistant and incredibly durable

Manufactured by state of the art technology of needle punching and thermal bonding using recycled polyester fibers and virgin polyester fibers for excellent acoustical performance, fire rating, moisture resistance and lifelong durability

SOUND ABSORPTION

GOLDLINE® SOUND BARRIER – Sound Absorption Board for AIRBORNE and IMPACT Sound Control is Polyester Fiber Board made from 100% Polyester Fibers with sound-absorbing power and thermal insulation character. It is a very fine quality Next Generation Technological GREEN Product Designed to assist the Designers achieve excellent Noise Control Levels / Acoustic Comforts and Thermal Insulation

GREEN

GREEN PRODUCT– Environment Friendly and Health Wise. Non – Irritant, Non

Allergenic, Fire Rated,

SAVES COST– Performs as High Rated Sound and Thermal Insulation

Can be installed in any Gypsum Board Wall Partition System (Single or Double Sides)

Safe, easy for handling and installing

Excellent in tensile strength and coherence

100% recycling and incineration environmentally friendly

Excellent in drainage and safe shape character

No poisonous factors to human body during the lifetime.

No poisonous gas emission in combustion

Curved surface works and circle pillar installing is possible with easy

Environment friendly and harmless to human body Removing harmful environment elements as substitute materials for plaster board, glass fi-ber panel, there are no weathering and no dust happening like scattering.

(2) Soundproof, Thermal Insulation, Softness and Light Weight Having tensile strength and softness simultaneously consisting of three-dimensional net-work through the self-fusion of cellulose (polyester), having soundproof, thermal insulation and light weight with having pores connected inside.

(3) Burning and humidity safety The low melting point ingredients of polyester melting in a low temperature in a fire Pre-vents the progress of flames with covering flames and the poisonous gas doesn’t hap-pen in combustion. It is a flame retardant material.

(4) Convenient and economical installation The convenience of execution is excellent because it is cut off by cutter and flexible, in-stallation period can be reduced because the finish progress of work can be removed, and reduction of material price and installation price can be made easy through direct applying to the cementitous wall, concrete slab, building sound isolation wall and ceiling systems, sandwich panels, acoustic underlayment for hard & soft floors and Multi

Installations for Fine Interior Design and Finishing

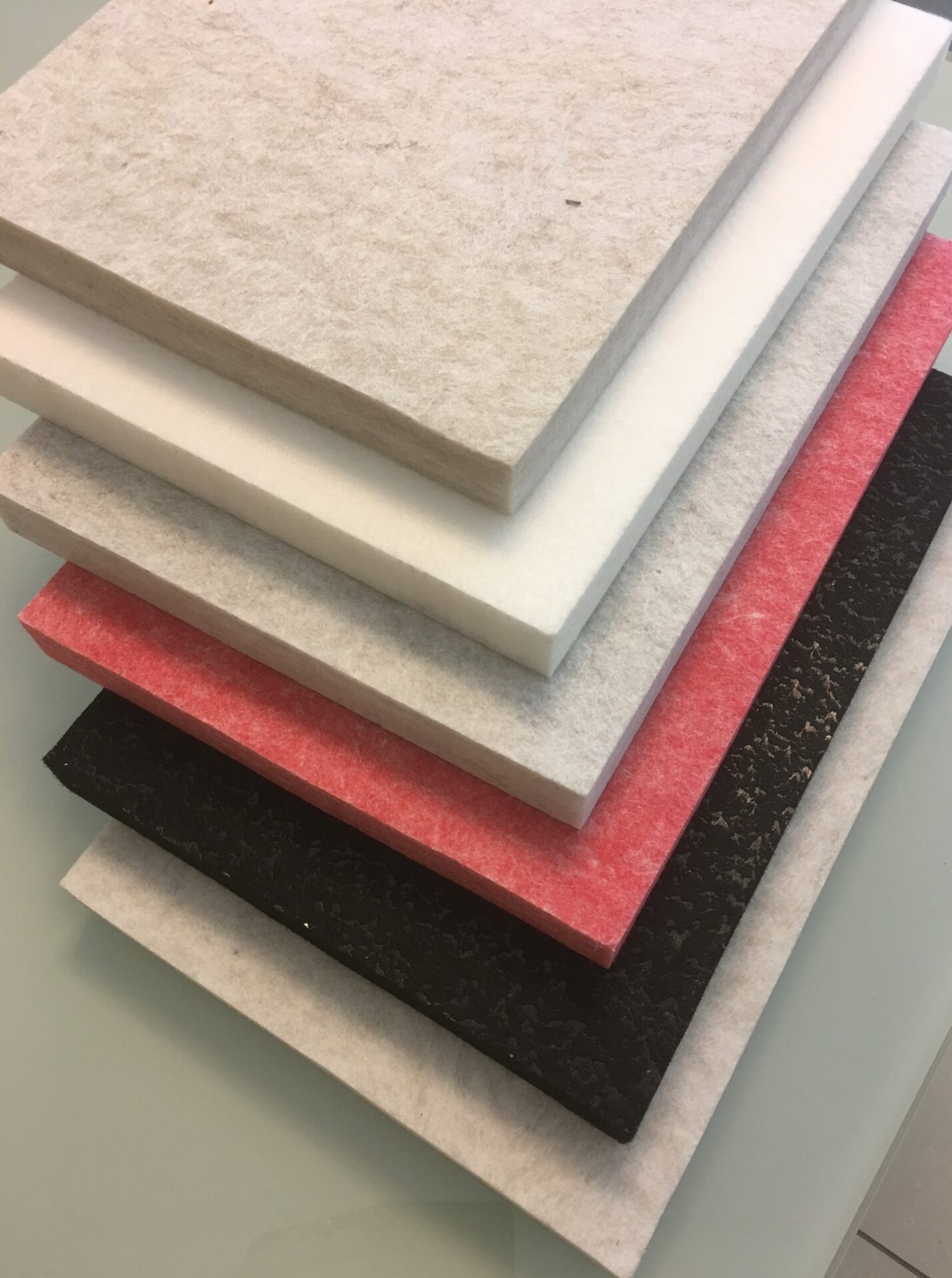

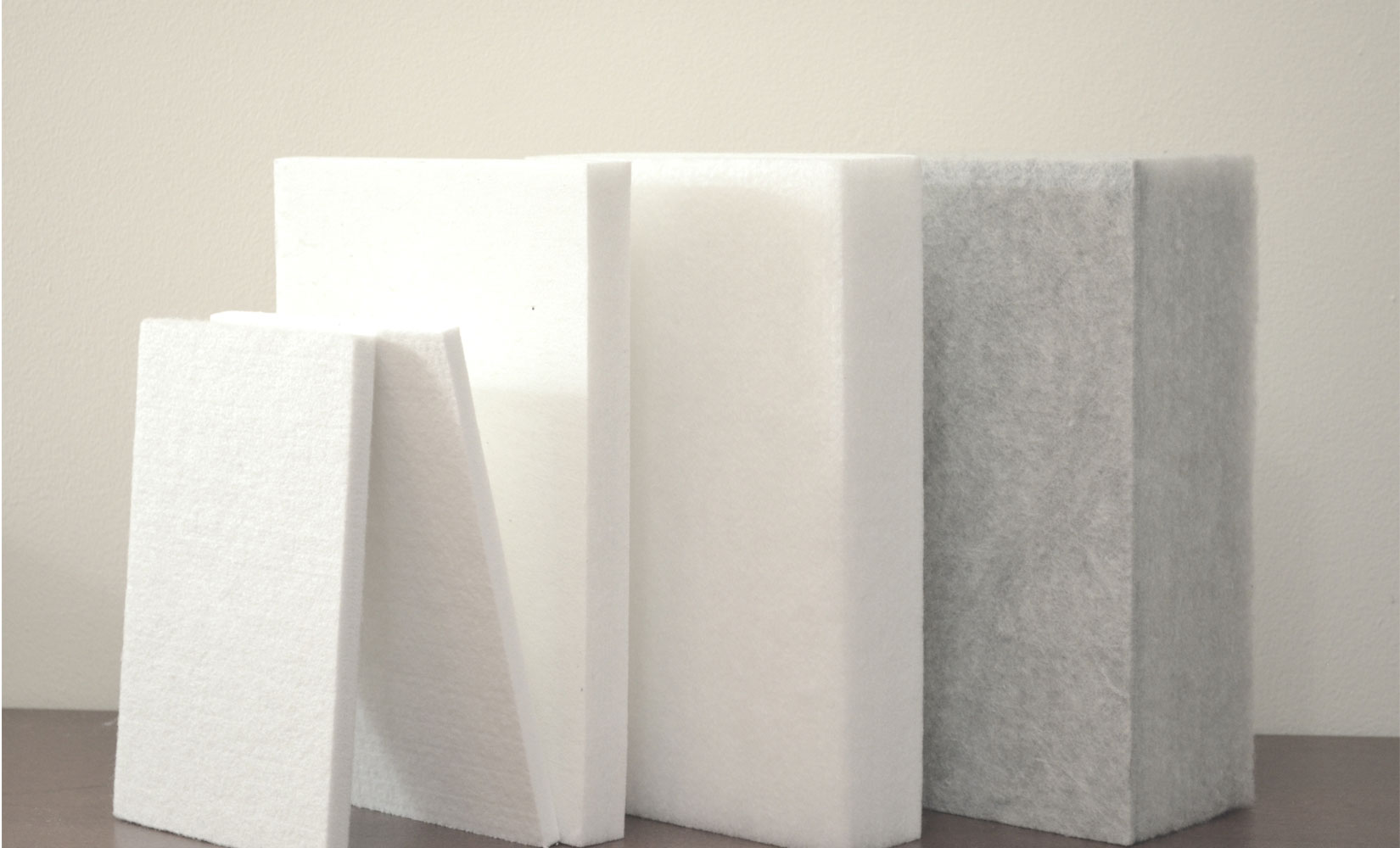

GOLDLINE SOUND ABSORPTION SYSTEMS PET PANELS are Available in 5mm, 10mm, 12mm, 15mm, 25mm, 50mm, 75mm and 100mm Thicknesses options, offers complete design flexibility and acoustical performance ratings ranging from NRC 0.40 to NRC 1.01

FINISHES

GOLDLINE SOUND ABSORPTION SYSTEMS can take various designs made by CNC, Fabric Lamination, Paints, Printing and Engraving to suit any Design Requirements, Fine interior Finishing and Decorative Solutions,

APPLICATIONS SECTORS – AREA OF USE

GOLDLINE Interior Acoustic Products are the Premium Solutions for Controlling Ambient Reverberated Noises and Sound Transmission for Entertainment, Educational, Healthcare, Offices / Commercial Spaces, Music Recording and Broadcasting Studios, Auditoriums, Theaters, Conference and Meeting areas, Recreational and Fitness places, Cinemas, Multimedia Presentation Environments, Homes and every area where sound matters.

Characteristics of SOUND

100% Polyester – Highly Compressed – Needle Punched

Medium Density Acoustic Board

Easy Installation

Excellent Acoustic Performance

Sound Reverberation Control / Noise Reduction

GREEN

(5) The excellence in comparison with the other materials Having soundproof, thermal insulation, softness, light weight, difficulty of combustion, safety of humidity and safety of environment simultaneously in comparison with Styro-foam, MDF, veneer board, plaster board and others. Suitable for Noise reductions in life environment and because of special characteristic of finishing materials with 45% sound-proof rate simultaneously it is the suitable product for multi interior décor applications – Energy: With excellent thermal insulation as certified, thermal efficiency is excellent. Because the safety of humidity being native to polyester fiber is excellent, let it not only drain (humidity rate 0.07%) but also maintain original intensity after the drainage.

Free Cutting: With harmlessness to human health as perfect (100%) polyester and the easiness of dealing and handling, the term of works is reduced and various shapes and curved surface works can be performed.

– Sound Absorption: Excellent Airborne and Impact soundproofing as certified. – Free Painting: With surface works, painting, wall paper, wall coverings, digitally printed skins and various fabrics finishing touches are performed

(6) The use of products – The keeping warmth of light weight partition heartwood, sound absorption insulating material (indoors finishing touches material) acoustic underlayment for hard and soft floors, ceiling, isolation wall systems and multi-applications – Construction, industrial heat equipments (tank, duct, electronic products etc.) keeping warmth sound absorption and insulating materials – insulation of sound in the machine room, sound arresting equipment materials

(7) The comparison of a property of matter

(1) The comparison of a property of matter in interior finishing touches materials. Item

	Sound Barrier	MDF	Plaster board	Plywood	Mineral Fibers
Use	intercept the heat/ soundproof/ finishing touches	finishing touches	finishing touches	finishing touches	soundproof
Use	intercept the heat/ soundproof/ finishing touches	materials	materials	materials	material
The quality of the material	100% polyester	wood fiber (Wood fiber)	calcium	veneer	minerals wool
The quality of the material	fiber	wood fiber (Wood fiber)	sulphate bichloride	veneer	minerals wool
Method of manu-facture	polyester fiber needle punched	heat pressing molding of wood fiber, wood material, with plastics adhesives	molding be-tween paper-boards after the plasticity of plaster material	attachment of veneer board grain by the type crossing at right angles	molding mineral wool with plate
Soundproof ratio(NRC)	0.45	–	0.06	0.15	0.42
Thermal conduc-tivity (Kcal/mh℃)	0.029~0.037	–	0.14	–	0.055
Density (kg/㎥)	237	400~800	600~900	400~650	500
Thickness (mm)	9~12	3~30	9.5~1.5	25~100	10~100
Damp proof	no influence	Fragile	fragile	recovery of the original form	fragile
Softness	Soft	Hard to trans-form	Hard to trans-form	Hard to	Hard to
Softness	Soft	Hard to trans-form	Hard to trans-form	transform	transform
The difficulty of burning	difficulty of burning	burning	difficulty of burning	burning	difficulty of burning

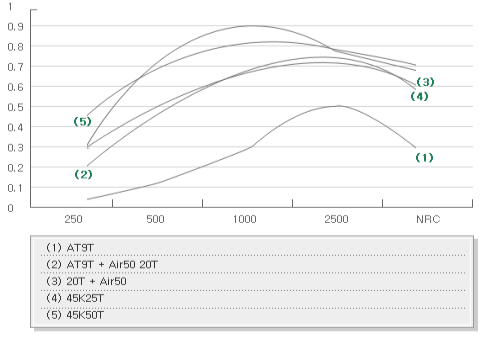

(8) Sound absorption character

(1) Sound absorption character in various installations of Sound Absorption Board

The measurement results of sound absorption character of Sound Barrier ( rever-beration room method sound absorption efficiency, %) – If there is a air-gap in the installation of Sound Barrier, the function of sound absorp-tion becomes better. –

When powerful sound absorption character is needed, Polyester is the BEST.

[Analysis table]

Sound Barrier is only related with SB9T column, but others of the line express the com-posite of Sound Barrier.

Frequency	SB9T	SB9T+Air50	20T	20T+Air50	45K25T	45K50T
250	0.21	0.271	0.14	0.276	0.278	0.451
500	0.37	0.467	0.454	0.719	0.528	0.738
1000	0.52	0.709	0.744	0.893	0.687	0.831
2500	0.37	0.733	0.784	0.781	0.718	0.789
NRC	0.37	0.454	0.531	0.667	0.553	0.702

[Function table of sound absorption materials]

(2) Thermal insulation charter of Sound Absorption Board of 9mm Thickness Test items

Test Item	Unit	Result
Thermal conductivity (The mean temperature 20 +/- 2 ℃)	W/m.K		0.03	KSL9016-95 heat flow meter

(2) Fire Ratings

Measurement methods : soundproofing walls (The Fire Services Act Enforcement Ordinance) – Measurement place : RTI (Testing & Research Institute)

Classification	Standard (Interior decoration material)	Result		Reference
	0.21	0.39		0.57
Remaining flame time (sec)	within 10	0	0	0	Judgment: success
Perfect combustion time (sec)	within 30	0	0	0
Carbonization Dimensions (cm²)	within 50	32.4	34.5	37.4
Carbonization length (cm)	within 20	6.3	6.4	6.6

(3) Specifications

	Polyester
Standard	gT
Density (K)	180~220
Thickness (mm)	10(5, 12, 25)
Size (mm*mm)	1200 * 2400
Color	SNOW WHITE
Construction	Attachment of adhesives and format, Fabrics processing, V-cutting possible

Thermal Insulation charter of Sound Absorption Board

[The insulation charter of Sound Absorption Board]

Test items	Unit	Result	Test method
Thermal conductivity (the mean temperature 20 +/- 2 ℃)	W/m.K	0.033	KSL 9016-95 heat flow meter

(6) Sound Absorption Board – _Fire Test

Classification		Standard				Result			Reference
(Interior decoration material)		#1				#2			#3
Remaining flame time (sec)			within 10		0	0		0			Judgment : Success
Perfect combustion time (sec)	within 30			0			0			0
Carbonization d_i_m_e_n_s_i_o_n_s_(_c_m_²)_ _	within 50			32.4			34.5			37.4
Carbonization (cm)	within 20			6.3			6.4			6.6
