GOLDLINE SQUARES THE ECHO ELIMINATORS with Especially Designed Polyester / Vinyl Fabric Lamination in Vibrant and High Fashioned Colors and Graphic Prints and Corporate Graphics Designed for Commercial and Home Office Environments to Eliminate Echo, Reduce Ambient Noise Levels and Create Acoustical Comfort

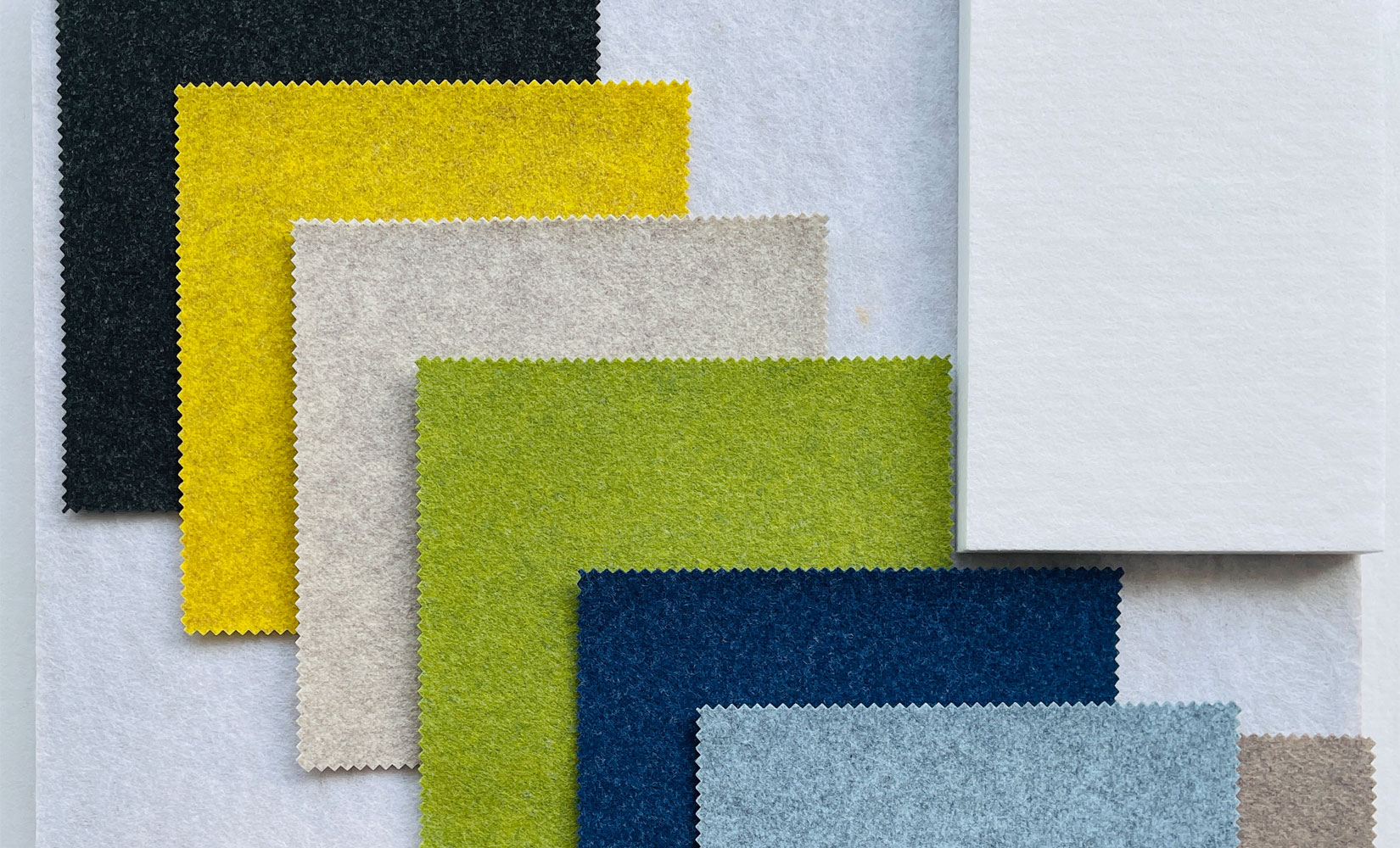

WIDE RANGE OF FABRIC COLORS TO SUIT ANY DÉCOR

GOLDLINE SQUARES THE ECHO ELIMINATORS are made of 100% Polyester Fibers that are Eco Friendly with Fabric Finishes which are Maintenance Free and Designed to Eliminate Echo in Interior Spaces and Environments

Suitable for Walls Installation. Our Products offer acoustic performance unmatched by other traditional products due to the compact nature of the HIGH-DENSITY IMPACT RESISTANT panel achieving high NRC ratings in a thin panel.

Our innovative products bring environmentally-friendly alternatives as new eco-friendly products with premium performance.

Acoustic Performance

Manufactured by state of the art technology of needle punching and thermally bonding using recycled polyester fiber and virgin polyester fiber for excellent acoustical performance, fire rating, moisture resistance and lifelong durability.

Availability

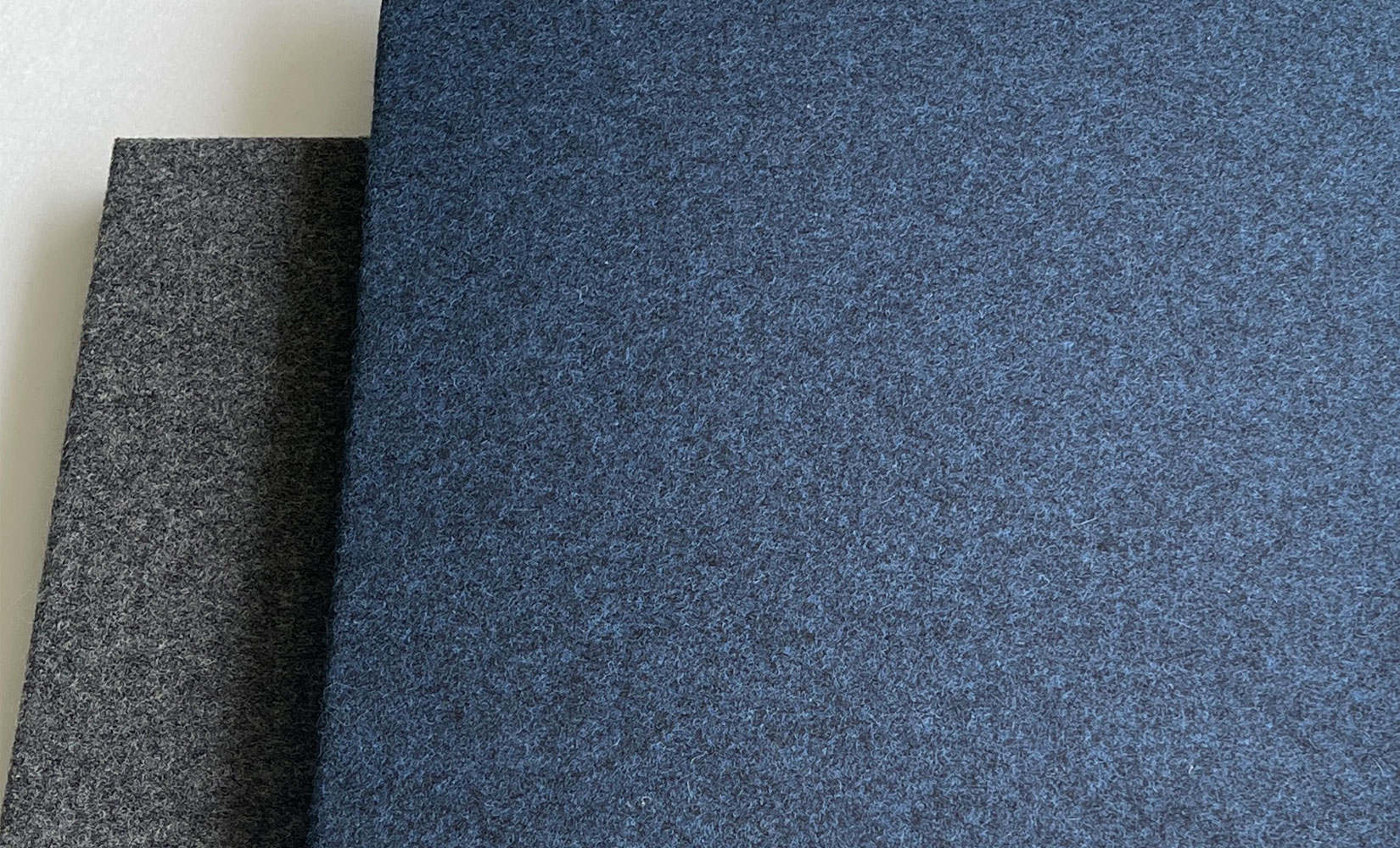

GOLDLINE SQUARES THE ECHO ELIMINATORS are available in 12mm, 25mm and 50mm thicknesses options, offers complete design flexibility and acoustical performance ratings ranging from NRC 0.40 – NRC 0.70 and NRC 0.95 respectively.

Finishes

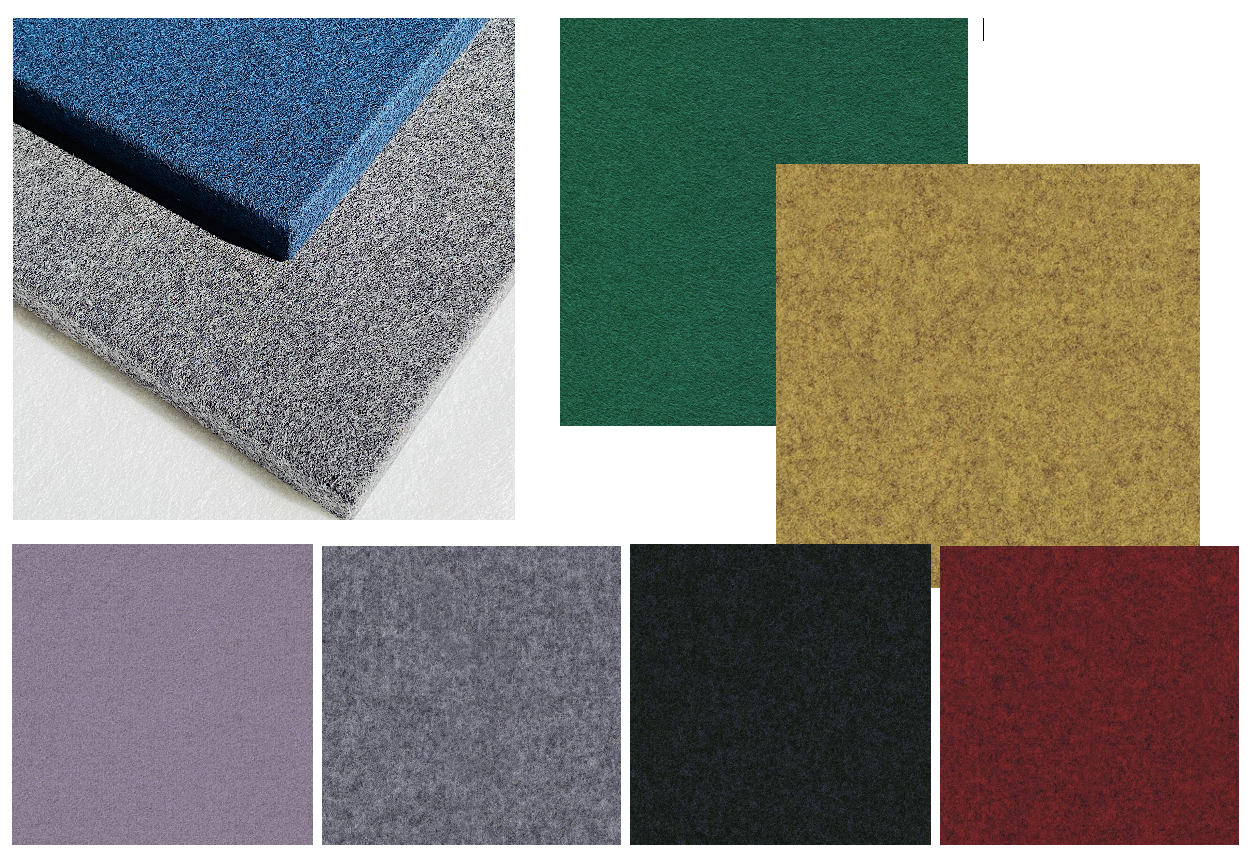

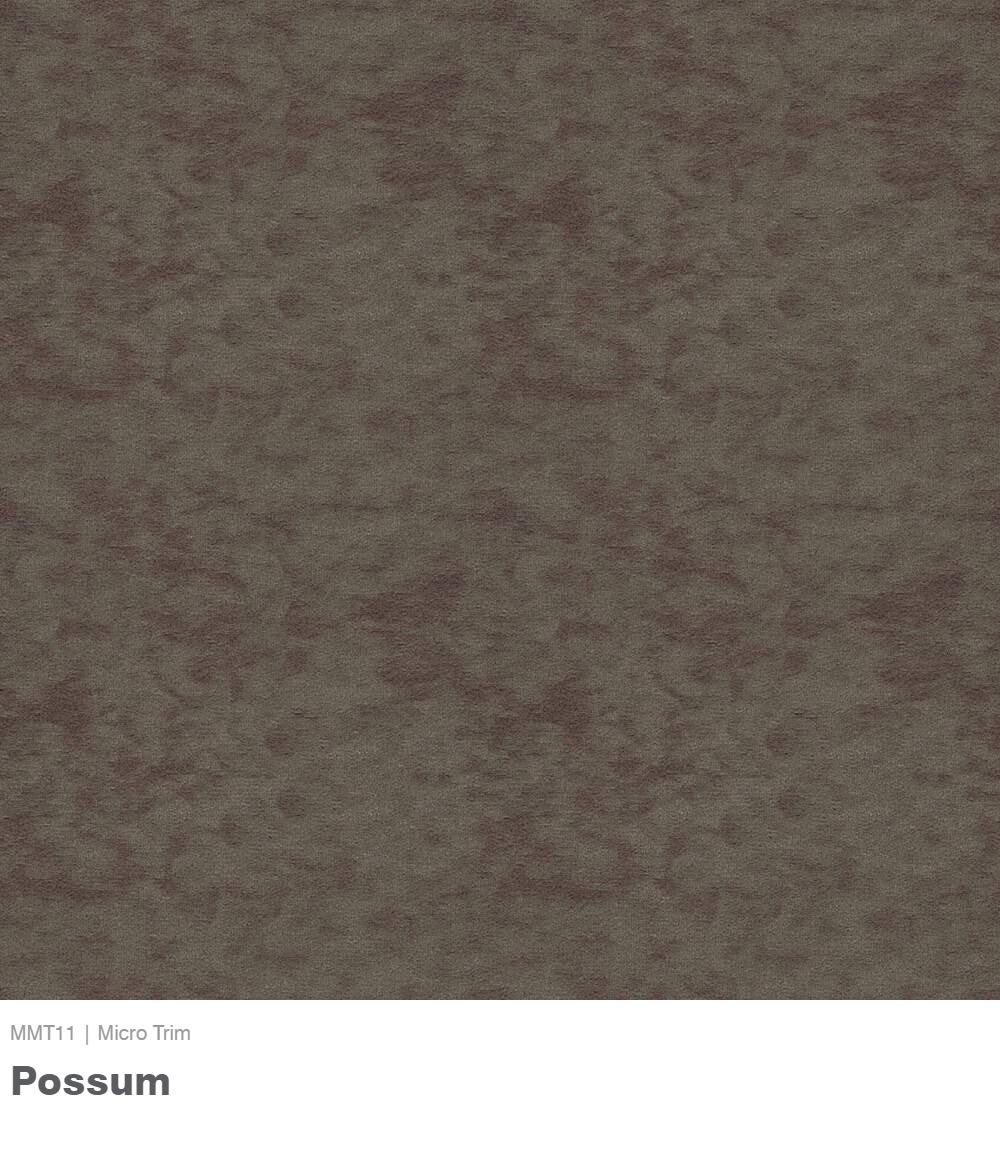

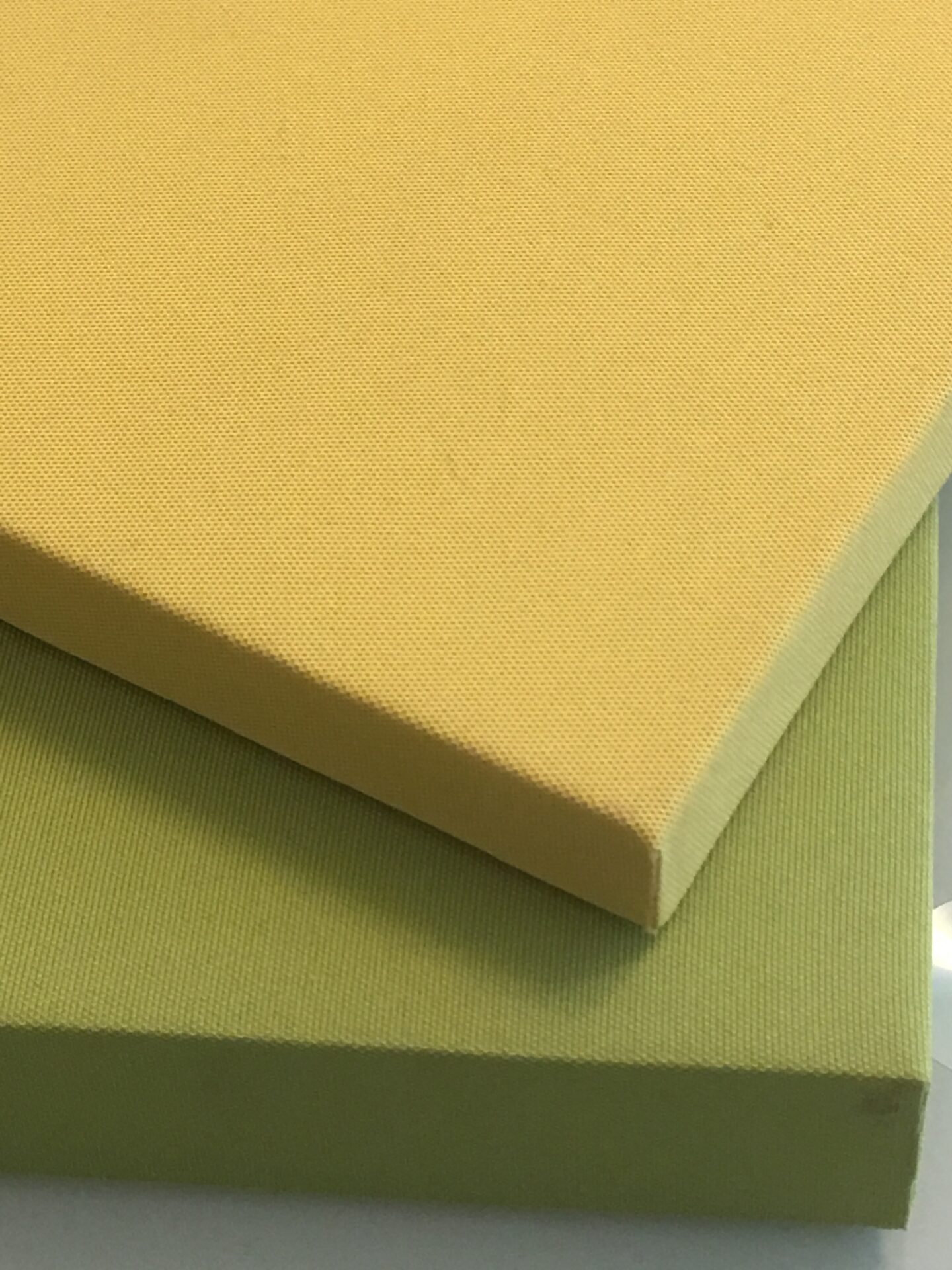

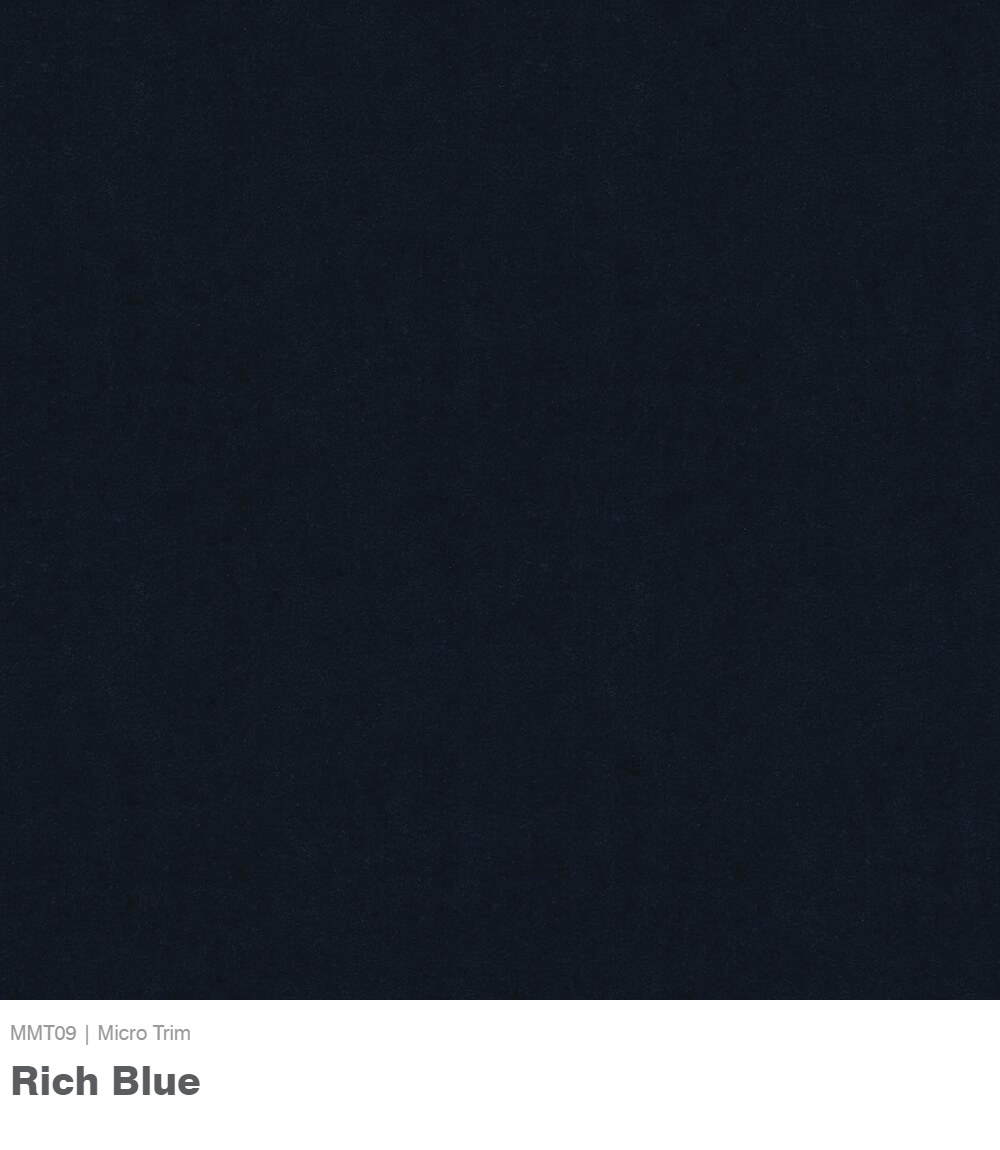

Wide range of Fabric Finishes to suit any design requirements, fine interior furnishing and decorative solutions.

Applications

GOLDLINE SQUARES THE ECHO ELIMINATORS are the Premium Solutions for Controlling Ambient Reverberated Noises and Sound Transmission for:

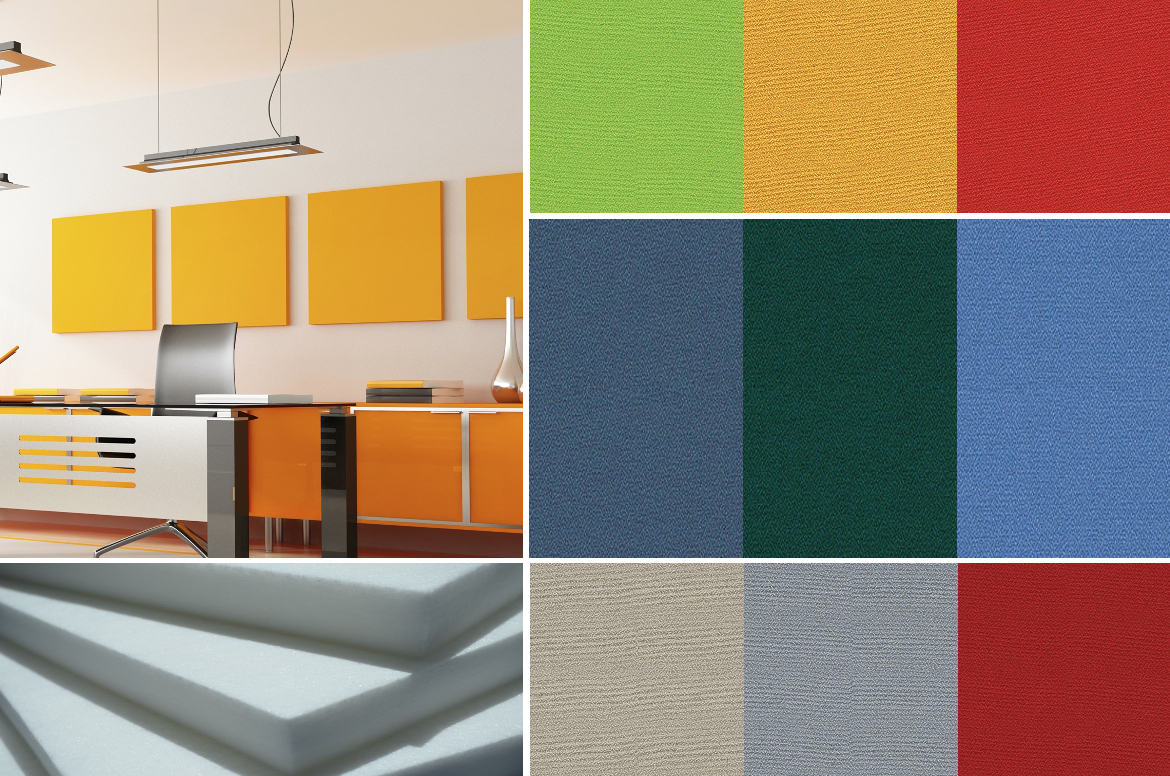

  • Modern Offices
  • Conference and Meeting Rooms
  • Lounges and Waiting Area
  • Call Centers

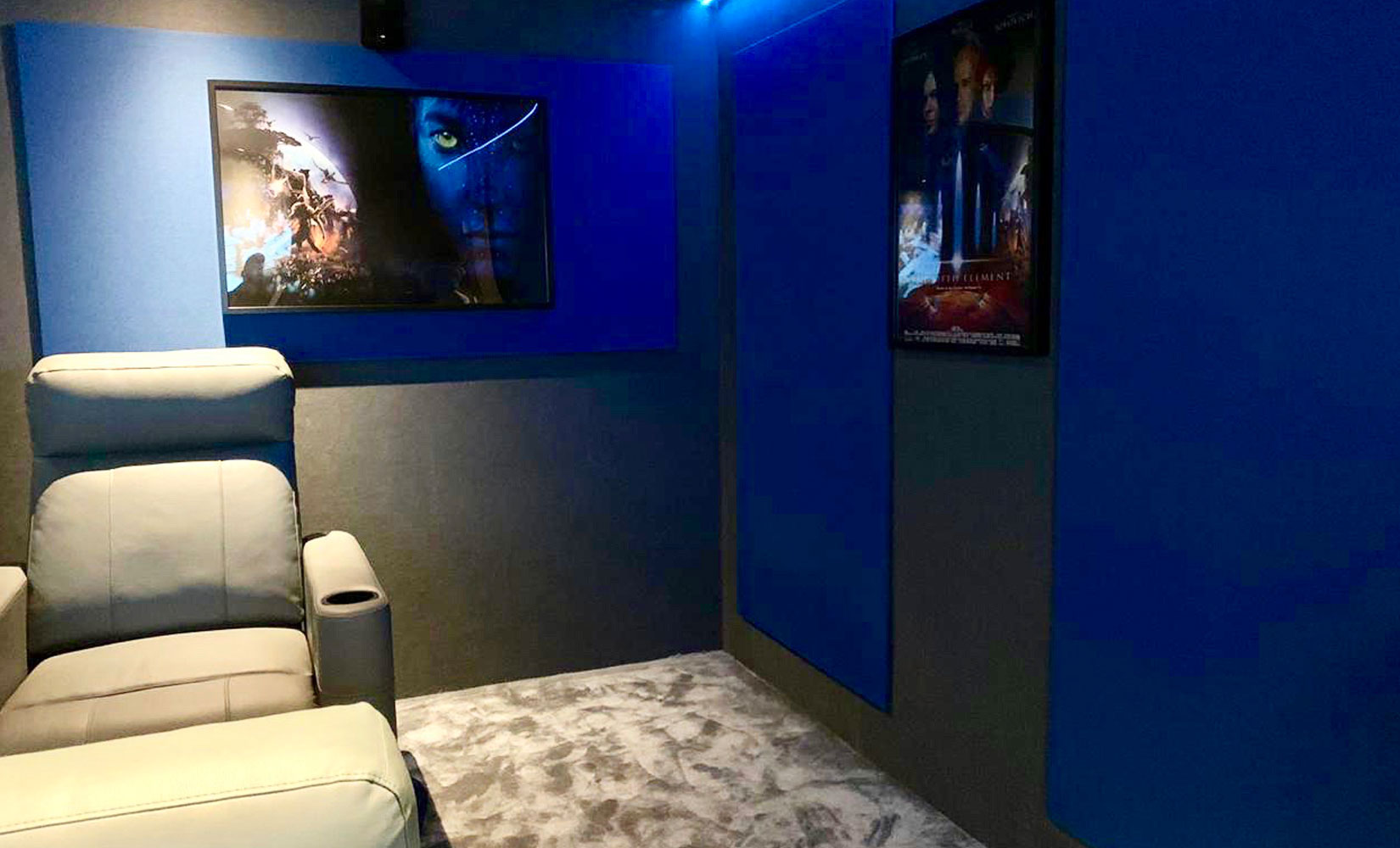

  • Homes and TV Lounges
  • Restaurants
  • Every area where sound matters

Possibilities

Limitless branding and design possibilities with in-house custom cutting and size customization.

Specifications

GOLDLINE SOUND ABSORPTION SYSTEMS are the most advanced and efficient absorbing products available today for reducing reverberant noise levels in many environments.

GOLDLINE SOUND ABSORPTION SYSTEMS are Acoustically Tested as per ASTM 423-09A and Fire Rated Test as per ASTM E84 and Anti Fungi (Moisture Resistant) Test as per C1338

Product Specifications

Fire Rating

Class A NFPA 101 Life Safety Code

Fire Test Certified

ASTM E84-90A Equivalent to NFPA No. 255 and UL No. 723

Flame Spread Index

0 – 25 Flame Spread Index

Fungi Resistance Certified

ASTM C 1338 – 08

Smoke Developed Index values

0 – 450 Smoke Developed Index

LEED Rating

MER V 4.1 Rating

Installation

Any Smooth Surface

Mechanical Installation

GOLDLINE Anchor System

Components

Polyester Resin

CAS NO.

68604-67-1

Percent Range

90-95%

OSHA regulations

NOT hazardous according OHSA29CFR1910.1200

HMIS Ratings

Health 0 Flammability 0 Reactivity 0

Primary Route of Exposure

None

Eye contact

No adverse effects expected

Skin Contact

No adverse effects expected

Inhalation

No adverse effects expected

Ingestion

No adverse effects expected

Medical Conditions Aggravated by Exposure

None expected

PHYSICAL AND CHEMICAL PROPERTIES

GOLDLINE POLYESTER SOUND ABSORPTION ACOUSTICAL SYSTEM

ODOR

None

Physical state

Solid

Vapor Pressure

None

Vapor Density(air-1)

Not Applicable

pH

Not Applicable

DOT Corrosivity

Not Applicable

Percent Volatile by Volume

<1%

VOC- Volatile Organic Content

<1%

Molecular Weight

Not Applicable

Boiling Point

Not Applicable

Melting Point

220C

Specific Gravity

>1.0

Average Carbon Number

Not Applicable

Viscosity@100F

Not Applicable

Viscosity@40C

Not Applicable

Pour Point

Not Applicable

Solubility in water

Not Soluble

Octanol/Water Coefficient

None

Chemical Stability

Stable

Conditions to Avoid

None

Incompatible Materials to Avoid

None

Hazards in Blend:

Not Hazardous

Sizes & Thicknesses and Shapes & Forms

ThicknessBoard WidthBoard Length
9mm
12mm
1200mm
1200mm
600mm
2400mm
1200mm
1200mm
25mm1200mm
1200mm
1200mm
600mm
2400mm
2700mm
1200mm
1200mm
50mm1200mm
1200mm
2400mm
1200mm

Complementary Products

GOLDLINE SOUND ABSORPTION SYSTEMS

GOLDLINE FABRIC COVERED PANELS

GOLDLINE ACOUSTIC FABRICS AND FELTS
