GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS, BAFFLES AND SOUND ABSORPTION CEILING PANELS
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AND SOUND ABSORPTION CEILING PANELS are High Performing Acoustic CEILING SYSTEMS for sound reverberation control and ambient noise levels reduction in commercial and education spaces and perfect for Open-Plan spaces.

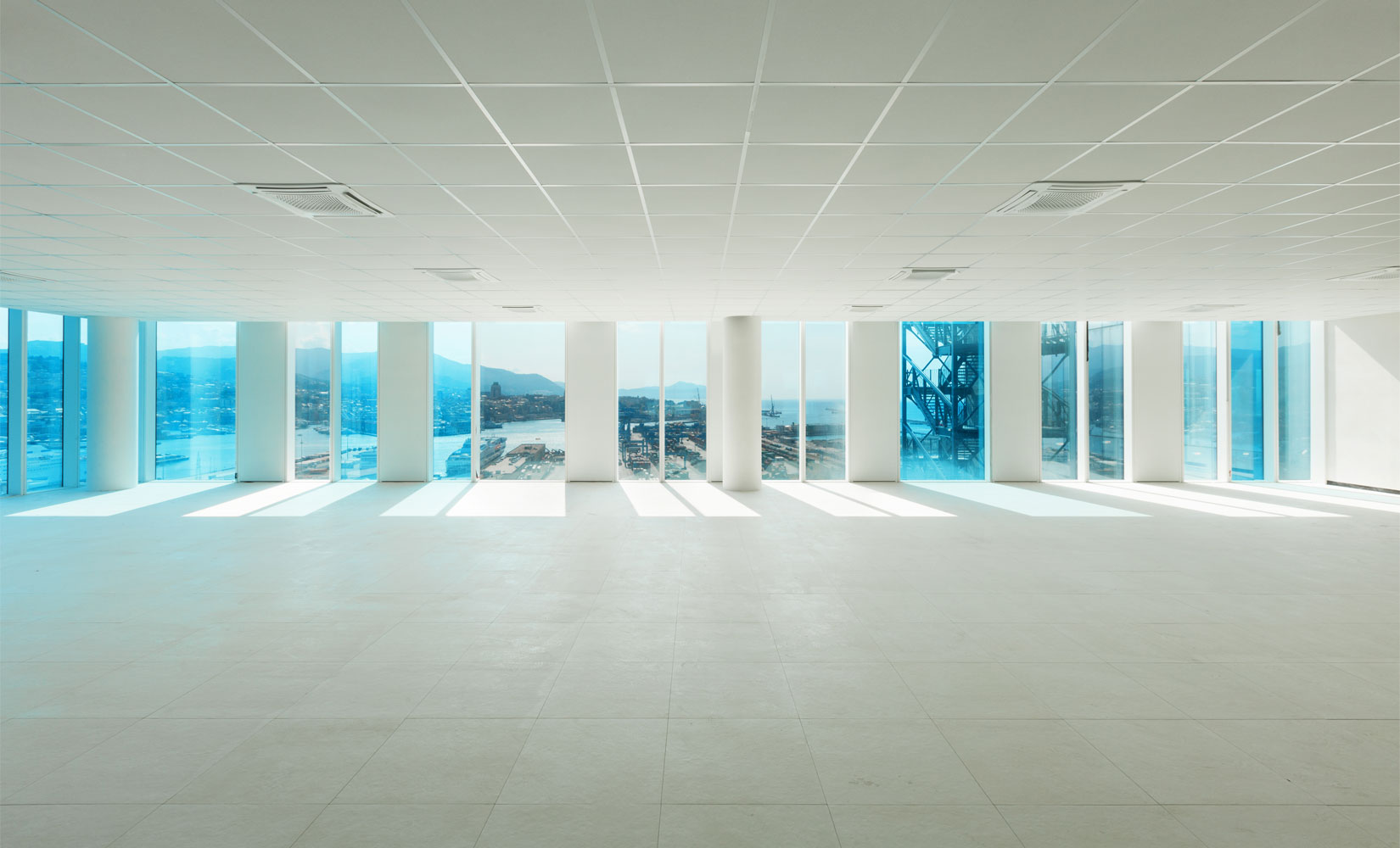

GOLDLINE ACOUSTIC CEILING TILES AND SOUND ABSORPTION CEILING PANELS Ceiling Tiles are available in two styles formats: Square and Rectangle with Square Edge for a subtle aesthetic for a strong and defined ceiling design.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AND SOUND ABSORPTION CEILING PANELS are extremely durable and will not chip, crack or break, resulting in no wastage in installation.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AND SOUND ABSORPTION CEILING PANELS ARE MADE OF 100% POLYESTER FIBERS DESIGNED AS A LIGHT WEIGHT, EASY AND EFFECTIVE SOLUTION TO CONTROL AND ABSORB VARIOUS LEVELS OF SOUND FREQUENCIES IN ANY COMMERCIAL, RETAIL, EDUCATION, HEALTHCARE, AND OTHER ENVIRONMENTS. Suitable for Ceiling Installation in all working spaces with highly sound absorbent, light weight, moisture resistant, and non-allergenic characteristics Designed to fit into standard metal grid systems and available in a square edge.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AND SOUND ABSORPTION CEILING PANELS do not contain chemical binders or crystalline silica they are non-toxic, non-irritant, and non-allergenic.
Our Products offer acoustic performance unmatched by other traditional products due to the compact nature of the HIGH and MEDIUM DENSITY panels achieving higher NRC ratings in a thin panel.
Our innovative products bring environmentally friendly alternatives as new eco-friendly GREEN products with premium performance.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AVAILABLE IN WIDE RANGE OF FABRIC N FELT FINISHES / COLORS TO SUIT ANY INTERIOR DÉCOR
Acoustic Performance
Manufactured by state-of-the-art technology of needle punching and thermally bonding using recycled polyester fiber and virgin polyester fiber for excellent acoustical performance, fire rating, moisture resistance and lifelong durability.
Light Weight
GOLDLINE FABRIC COVERED ACOUSTIC PANELS are light weight, having high and medium densities, semi-rigid, impact resistant and incredibly durable.
Availability
GOLDLINE FABRIC COVERED ACOUSTIC PANELS are available in 12, 25 and 50mm thicknesses options, offers complete design flexibility and acoustical performance ratings ranging from NRC 0.40 – NRC 0.70 and NRC 0.97 respectively.
Finishes
Wide range of Acoustic Fabrics Finishes to suit any design requirements, fine interior furnishing, and decorative solutions.
WHITE,
BEIGE
GOLDLINE FABRIC COVERED ACOUSTIC PANELS are the Premium Solutions for Controlling Ambient Reverberated Noises and Sound Transmission for:
Possibilities
Limitless branding and design possibilities with in-house custom cutting and size customization.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AND SOUND ABSORPTION CEILING PANELS are High Performing Acoustic CEILING SYSTEMS for sound reverberation control and ambient noise levels reduction in commercial and education spaces and perfect for Open-Plan spaces.
GOLDLINE ACOUSTIC CEILING TILES AND SOUND ABSORPTION CEILING PANELS Ceiling Tiles are available in two styles formats: Square and Rectangle with Square Edge for a subtle aesthetic for a strong and defined ceiling design.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AND SOUND ABSORPTION CEILING PANELS are extremely durable and will not chip, crack or break, resulting in no wastage in installation.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AND SOUND ABSORPTION CEILING PANELS ARE MADE OF 100% POLYESTER FIBERS DESIGNED AS A LIGHT WEIGHT, EASY AND EFFECTIVE SOLUTION TO CONTROL AND ABSORB VARIOUS LEVELS OF SOUND FREQUENCIES IN ANY COMMERCIAL, RETAIL, EDUCATION, HEALTHCARE, AND OTHER ENVIRONMENTS. Suitable for Ceiling Installation in all working spaces with highly sound absorbent, light weight, moisture resistant, and non-allergenic characteristics Designed to fit into standard metal grid systems and available in a square edge.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AND SOUND ABSORPTION CEILING PANELS do not contain chemical binders or crystalline silica they are non-toxic, non-irritant, and non-allergenic.
Our Products offer acoustic performance unmatched by other traditional products due to the compact nature of the HIGH and MEDIUM DENSITY panels achieving higher NRC ratings in a thin panel.
Our innovative products bring environmentally friendly alternatives as new eco-friendly GREEN products with premium performance.
GOLDLINE ACOUSTIC CEILING TILES, PANELS, CLOUDS AND BAFFLES AVAILABLE IN WIDE RANGE OF FABRIC N FELT FINISHES / COLORS TO SUIT ANY INTERIOR DÉCOR
Acoustic Performance
Manufactured by state-of-the-art technology of needle punching and thermally bonding using recycled polyester fiber and virgin polyester fiber for excellent acoustical performance, fire rating, moisture resistance and lifelong durability.
Light Weight
GOLDLINE FABRIC COVERED ACOUSTIC PANELS are light weight, having high and medium densities, semi-rigid, impact resistant and incredibly durable.
Availability
GOLDLINE FABRIC COVERED ACOUSTIC PANELS are available in 12, 25 and 50mm thicknesses options, offers complete design flexibility and acoustical performance ratings ranging from NRC 0.40 – NRC 0.70 and NRC 0.97 respectively.
Finishes
Wide range of Acoustic Fabrics Finishes to suit any design requirements, fine interior furnishing, and decorative solutions.
FINISHES
WHITE,
BEIGE
GREY
AND BLACK
Standard Colors to suit Functional Design Requirements, Interior Finishing and Decor.
ApplicationsGOLDLINE FABRIC COVERED ACOUSTIC PANELS are the Premium Solutions for Controlling Ambient Reverberated Noises and Sound Transmission for:
- Entertainment
- Educational
- Healthcare

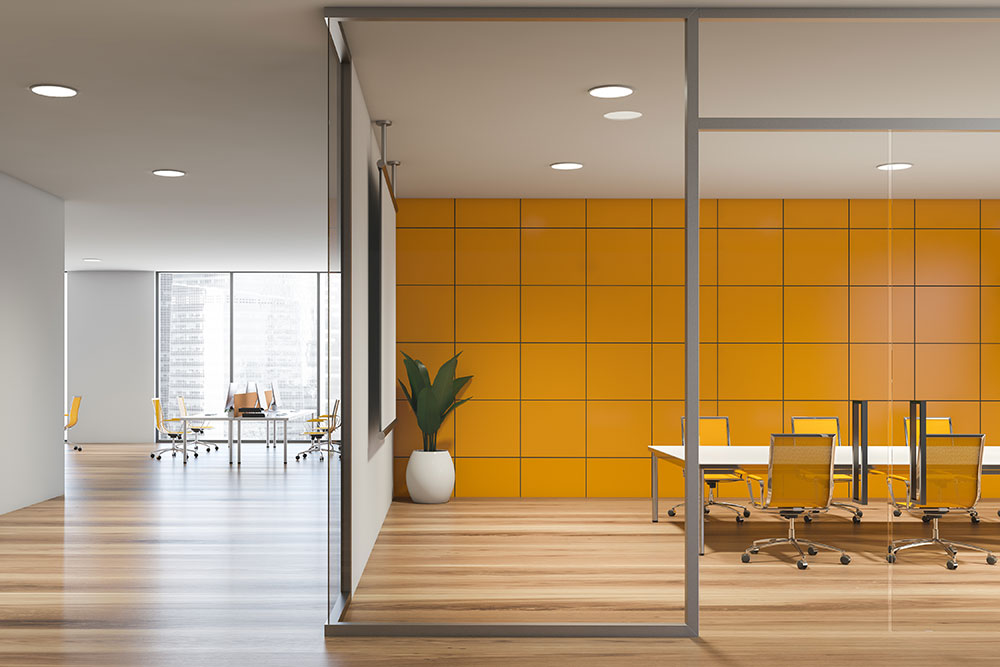

- Offices / Commercial Spaces
- Music Recording and Broadcasting Studios
- Auditoriums, Cinemas & Theaters

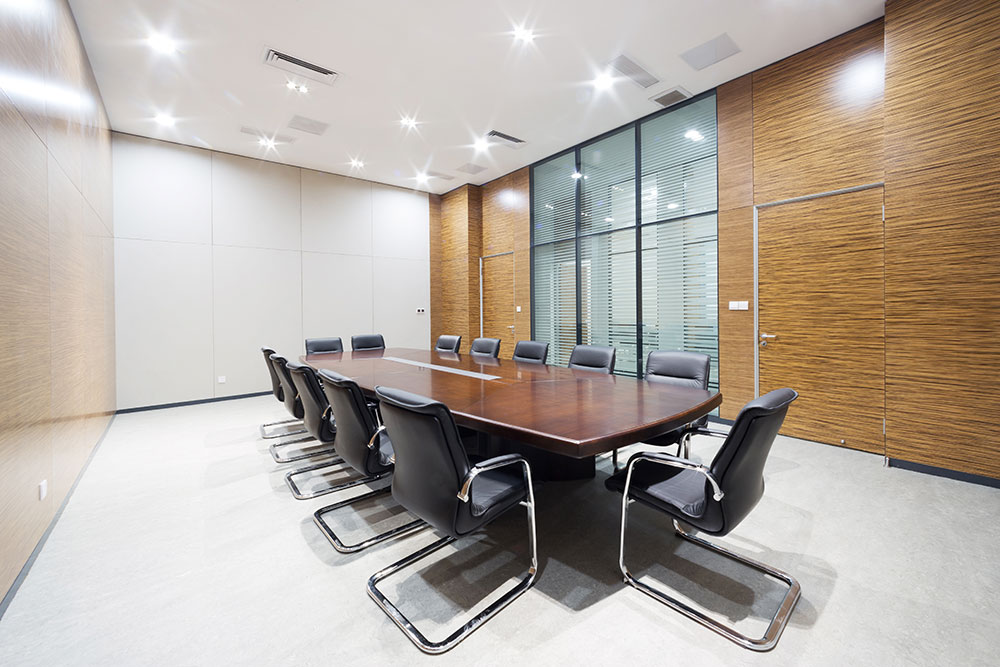

- Conference and Meeting Areas
- Recreational and Fitness Places
- Multimedia Presentation Environments
- Homes and every area where sound matters
Possibilities
Limitless branding and design possibilities with in-house custom cutting and size customization.
Specifications
GOLDLINE SOUND ABSORPTION SYSTEMS are Acoustically Tested as per ASTM 423-09A and Fire Rated Test as per ASTM E84 and Anti Fungi (Moisture Resistant) Test as per C1338
Product Specifications
Fire Rating
Class A
NFPA 101 Life Safety Code
Fire Test Certified
ASTM E84-90A
Equivalent to NFPA No. 255 and UL No. 723
Flame Spread Index
0 – 25 Flame Spread Index
Fungi Resistance Certified
ASTM C 1338 – 08
Smoke Developed Index values
0 – 450 Smoke Developed Index
LEED Rating
MER V 4.1 Rating
Installation
Any Smooth Surface
Mechanical Installation
GOLDLINE Anchor System
Components
Polyester Resin
CAS NO.
68604-67-1
Percent Range
90-95%
OSHA regulations
NOT hazardous according OHSA29CFR1910.1200
HMIS Ratings
Health 0 Flammability 0 Reactivity 0
Primary Route of Exposure
None
Eye contact
No adverse effects expected
Skin Contact
No adverse effects expected
Inhalation
No adverse effects expected
Ingestion
No adverse effects expected
Medical Conditions Aggravated by Exposure
None expected
PHYSICAL AND CHEMICAL PROPERTIES
GOLDLINE POLYESTER SOUND ABSORPTION ACOUSTICAL SYSTEM
ODOR
None
Physical state
Solid
Vapor Pressure
None
Vapor Density(air-1)
Not Applicable
pH
Not Applicable
DOT Corrosivity
Not Applicable
Percent Volatile by Volume
<1%
VOC- Volatile Organic Content
<1%
Molecular Weight
Not Applicable
Boiling Point
Not Applicable
Melting Point
220C
Specific Gravity
>1.0
Average Carbon Number
Not Applicable
Viscosity@100F
Not Applicable
Viscosity@40C
Not Applicable
Pour Point
Not Applicable
Solubility in water
Not Soluble
Octanol/Water Coefficient
None
Chemical Stability
Stable
Conditions to Avoid
None
Incompatible Materials to Avoid
None
Hazards in Blend:
Not Hazardous
Sizes & Thicknesses and Shapes & Forms
Thickness | Sheet Sizes | |
Width | Length | |
9mm
12mm | 600mm 600mm 600mm 600mm 1200mm | 1200mm 600mm 1200mm 600mm 2400mm |
25mm | 600mm 600mm 1200mm 1200mm
| 1200mm 600mm 1200mm 2400mm
|
50mm
| 600mm 600mm 1200mm | 1200mm 600mm 1200mm |
