HOME CINEMA SOUND PROOFING SYSTEM

State of the art technology SOUND PROOFING or SOUND ISOLATION system for WALL and Ceiling installations for creating Sound Isolation / Sound Proofing.

Special product for sound proofing has been designed and produced to control sound transmission control, absorb sound reverberation, sound damping and vibration control/noise deadening.

One product has two sound proofing functions as eliminating echo, controling sound reverberation, reducing ambient noise levels and controlling sound transfer from inside – outside.

GOLDLINE PEACE POWER wall cladding system has the ability to control transmission (control inside noises from going outside and outside noises from coming inside) and Absorb Inside Noises, Control Sound Reverberation and Reduce Ambient Noise levels.

Our innovative products bring environmentally friendly alternatives as new eco-friendly products with premium performance.

GOLDLINE PEACE POWER Products are Available in 16mm for 40% Acoustic Performance, 32mm for 75% Acoustic Performance, 48mm Thicknesses for 90% Acoustic Performance options, offering complete design flexibility and acoustical performance ratings

  • High Sound Isolating Efficiency and High Damping Efficiency and Noise Vibration Control for Solid Borne Noises
  • Water Resistant and High Weather Ability
  • High Mechanical Properties
  • Excellent Stability Against Fire with High Self-Extinguishing Properties
  • Easy to Laminate with Various Construction Materials

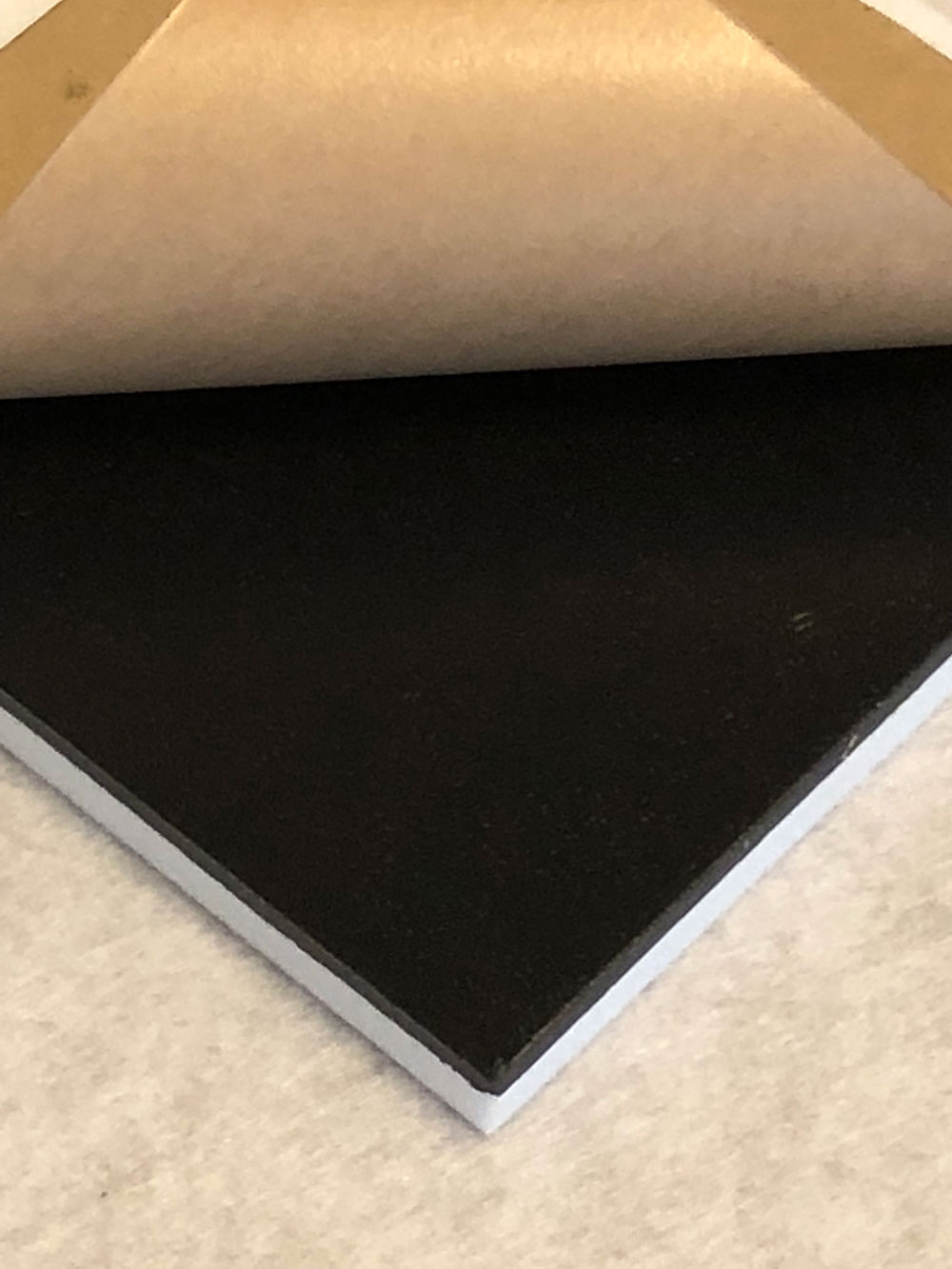

  • Single and Double Adhesive with Peel Off Paper for the Ease of Installation and Adhering to Concrete
  • APPLICATIONS SECTORS –

AREA OF USE

GOLDLINE PEACE POWER – HIGHLY EFFICIENT SOLID BORNE NOISE DAMPING AND VIBRATION CONTROL AND SOUND ISOLATION SYSTEM for CREATING QUIET ENVIRONMENT.

Suitable for WALLS and CEILING and FLOOR Installations for Projects like

Music Recording and Broadcasting Studios

Cinemas

Homes

Entertainment

Apartments (neighbors’ disturbance)

and

every area where SOLID BORNE NOISE DAMPING AND VIBRATION CONTROL AND SOUND ISOLATION is REQUIRED

Finishes

Limitless Finishing possibilities like

Fabrics

Paints

Wall papers

Felts

Wood Cladding

Specifications

GOLDLINE PEACE POWER – ACOUSTICAL RIGID BOARD AND SOUND ISOLATION – VIBRATION AND DAMPING BARRIER



SOUND ISOLATOR, VIBRATION AND SOUND TRANSMISSION DAMPER and HIGHLY SOUND ABSORBENT / IMPACT RESISTANT BOARD



SYNTHETIC RUBBER, MASS LOADED VINYL AND 100% POLYESTER FIBERS LAMINATED (ECO FRIENDLY) GREEN PRODUCT

Properties

  • Highly Compressed, High Density Sound Isolator, Vibration and Sound Transmission Barrier
  • High Damping Efficiency for Solid-Borne Noise.
  • High Damping Efficiency in broad temperature range and low variation of loss factor with temperature change
  • High Insulation Efficiency with high sound transmission loss
  • Free-resistant grade
  • High water-resistant and waterproof
  • 100% Polyester, Polyethylene Terephthalate – Highly Compressed, High Density Acoustic Board
  • GREEN PRODUCT– Environment Friendly and Health Wise, Non – Irritant,
  • Non Allergenic, Fire Rated, Safe n Clean
  • No poisonous factors to human body,
  • No Chemical Hardening Involved
  • Excellent in tensile strength and coherence
  • 100% recycling and incineration environmental friendly
  • Light Weight

Product Specifications

Fire Rating

Class A NFPA 101 Life Safety Code

Fire Test Certified

ASTM E84-90A Equivalent to NFPA No. 255 and UL No. 723

Flame Spread Index

0 – 25 Flame Spread Index

Fungi Resistance Certified

ASTM C 1338 – 08

Smoke Developed Index values

0 – 450 Smoke Developed Index

LEED Rating

MER V 4.1 Rating

Installation

Any Smooth Surface

Mechanical Installation

GOLDLINE Anchor System

Components

Polyester Resin

CAS NO.

68604-67-1

Percent Range

90-95%

OSHA regulations

NOT hazardous according OHSA29CFR1910.1200

HMIS Ratings

Health 0 Flammability 0 Reactivity 0

Primary Route of Exposure

None

Eye contact

No adverse effects expected

Skin Contact

No adverse effects expected

Inhalation

No adverse effects expected

Ingestion

No adverse effects expected

Medical Conditions Aggravated by Exposure

None expected

PHYSICAL AND CHEMICAL PROPERTIES

GOLDLINE POLYESTER SOUND ABSORPTION ACOUSTICAL SYSTEM

ODOR

None

Physical state

Solid

Vapor Pressure

None

Vapor Density(air-1)

Not Applicable

pH

Not Applicable

DOT Corrosivity

Not Applicable

Percent Volatile by Volume

<1%

VOC- Volatile Organic Content

<1%

Molecular Weight

Not Applicable

Boiling Point

Not Applicable

Melting Point

220C

Specific Gravity

>1.0

Average Carbon Number

Not Applicable

Viscosity@100F

Not Applicable

Viscosity@40C

Not Applicable

Pour Point

Not Applicable

Solubility in water

Not Soluble

Octanol/Water Coefficient

None

Chemical Stability

Stable

Conditions to Avoid

None

Incompatible Materials to Avoid

None

Hazards in Blend:

Not Hazardous

Aquatic Toxicity:

No Data Available

Terrestrial Toxicity:

No Data Available

Terrestrial Toxicity:

No Data Available

Sizes & Thicknesses and Shapes & Forms

Thickness

Sheet Sizes

Width

Length

16mm

1200mm

2400mm

32mm

1200mm

2400mm

48mm

1200mm

2400mm

Complementary Products

GOLDLINE FABRIC COVERED PANELS

GOLDLINE WOOD ACOUSTIC PRO PANELS

GOLDLINE SOUND DAMPING AND VIBRATION OR NOISE DEADENING SOLUTION
